PLC Control Transformer Coil Winding Machine Copper And Aluminium Wire

PLC Control Transformer Coil Winding Machine Copper And Aluminium Wire

PLC Control Transformer Coil Winding Machine Copper And Aluminium Wire
PLC Control Transformer Coil Winding Machine Copper And Aluminium Wire

Large Image :  PLC Control Transformer Coil Winding Machine Copper And Aluminium Wire Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Usage: Winding Wire Coil
Maximum Winding Width: 400mm Center Height: 900mm
Motor Power: 2.2kw Winding Speed: 0- 200rpm
Wire Guide: 1 Pc Warranty: One Year
High Light:

PLC Control Transformer Coil Winding Machine

,

Copper Wire Transformer Coil Winding Machine

,

Alu Wire Transformer Coil Winding Machine

PLC Control Transformer Coil Winding Machine Copper And Aluminium Wire Winder

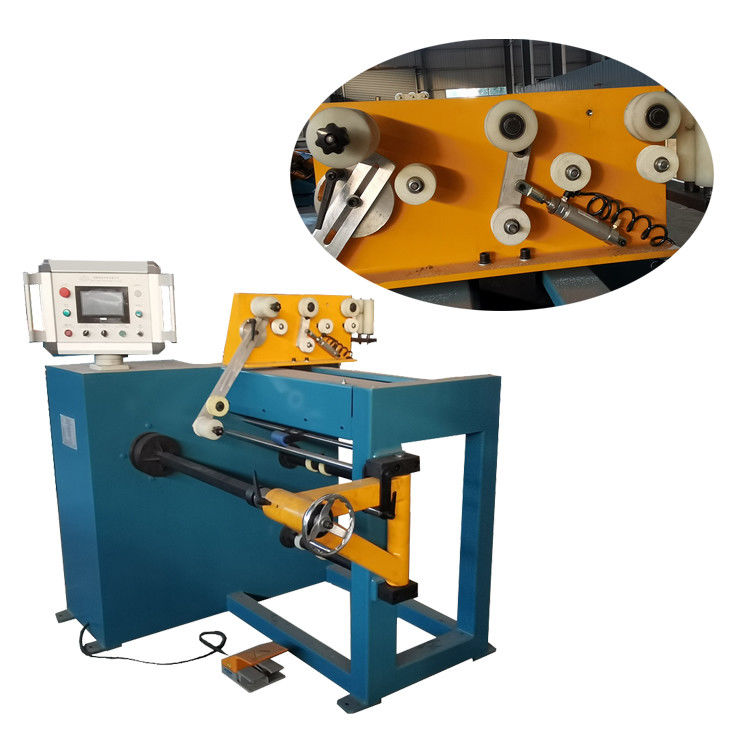

Description of transformer coil winding machine ZPX400



Transformer coil winding machine ZPX400 is a professional equipment for winding copper or aluminium wire, which can wind transformer coil or other similar products. This kind of transformer coil winding machine can be used to wind not only copper flat and round wire, but also aluminium flat and round wires. The transformer coil winding machine is provided with a wire guide for laying wire when winding, and the maximum transverse length of the wire guide is 400mm, which means the transformer coil winding machine can be used to wind the coil with maximum height 400mm. One 750w servo motor is adopted to drive the wire guide, which guarantees the moving precision of the wire guide. With one touch screen and HMI, it is very easy to operate the transformer coil winding machine.





Quick details of transformer coil winding machine ZPX400

  • 2.2kw motor
  • Maximum winding speed 200rpm
  • PLC control system
  • Winding flat or round wire
  • pneumatic system
  • Foot pedal



Technical Parameters of transformer coil winding machine ZPX400



Typical standard specifications of transformer coil winding machine ZPX400 are shown below, however these can be easily modified as requested.

Center Height: 900mm
Tailstock: Triangle supporter
Winding Motor Power: 2.2kw
Winding Speed: 0-200 rpm
Speed Regulation: stepless speed regulation
Control System: PLC
Flat Wire Maximum: 2.0x8.0mm
Round Wire Diameter: Φ0.3- Φ4.0mm
Maximum Winding Height: 400mm
Maximum Rotation Diameter: 500mm
Minimum Spread Pitch: 0.01mm
Basic Function: 5-digit counting
Counting Turn Range: 0 - 9999.9
