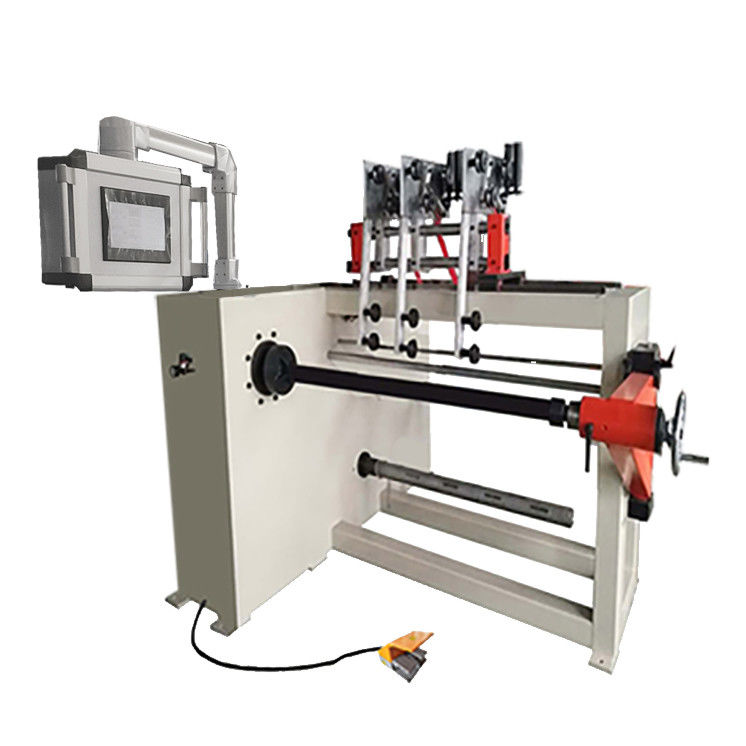

Automatic Transformer Coil Winding Machine Three Head Oil Immersed

Automatic PLC Control Three Head Oil Immersed Transformer Coil Winding Machine

Description of transformer coil winding machine

Three head transformer coil winding machine ZPX400-3 can:

• Be used to wind flat wire and round wire
• Be used to wind copper and aluminium wire
• Be used to wind three same specifications of coil at once
• Lay wire automatically
• Counter and counter reverse
• Store the data even though the power is off suddenly
• Wind at the speed of 160rpm
• Be programmable

Main Features of transformer coil winding machine

• Exact reversible winding counting
• Widely used, can be used to wind different specifications of wire
• Controlled by PLC, guarantees the machine’s action precise
• Driven by AC servo motor guarantees excellent start and stop action of wire guide
• Simple operation, accuracy and reliability, touch screen is very intuitional
• Full function, having many functions, such as counting, memory, counting reverse, etc.
• High automation, programmable feature guarantees the automation
• Slow starting, this is for safe
• Smooth running

Technical Parameters of transformer coil winding machine

Typical standard specifications of transformer coil winding machine ZPX400-3 are shown below, however these can be easily modified as requested.
