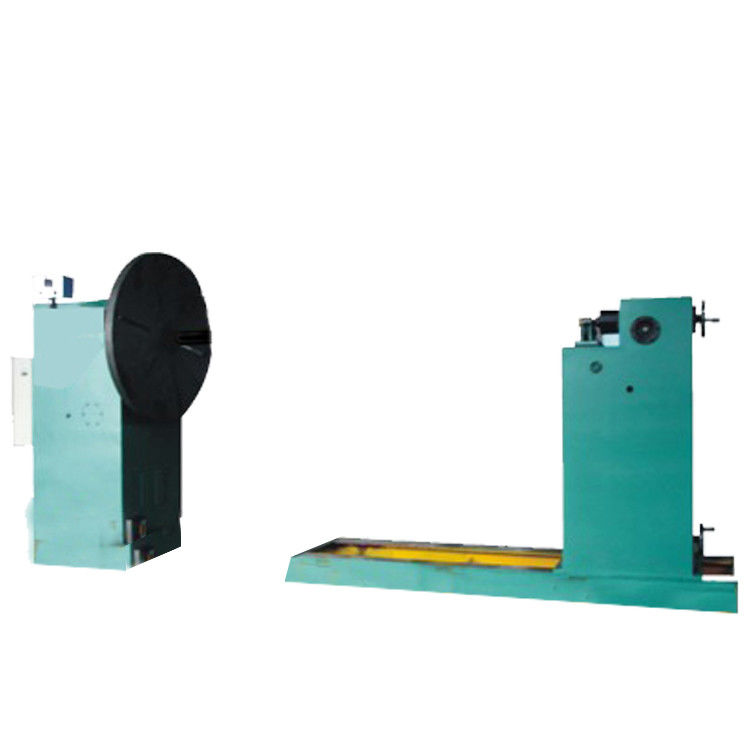

Copper Wire Winder Semi Automatic Transformer Coil Winding Machine 30rpm

Copper Wire Winder Semi Automatic Transformer Coil Winding Machine 30rpm

Copper Wire Winder Semi Automatic Transformer Coil Winding Machine 30rpm
Copper Wire Winder Semi Automatic Transformer Coil Winding Machine 30rpm

Large Image :  Copper Wire Winder Semi Automatic Transformer Coil Winding Machine 30rpm Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: GDY-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Wire Coil Winding Machine Function: Winding Transformer Coil
Winding Shaft Size: 80x80mm Winding Shaft Length: 3000mm
Winding Speed: 30rpm Maximum Motor Power: 7.5kw
Color: As Requested Warranty: 12 Months
High Light:

STT Transformer Coil Winding Machine

,

30rpm copper wire winding machine

,

Transformer Coil Winding Machine 30rpm

Heavy Duty Copper Wire Winder Semi Automatic Transformer Coil Winding Machine





Description of transformer coil winding machine GDY-5T



Semi automatic transformer coil winding machine GDY-5T is one kind of heavy duty transformer coil winding machine. The kind of transformer coil winding machine can be used to wind the transformer coil with maximum winding width 2800mm and other similar products. The transformer can be used to winding both copper round or flat wire and aluminium round or flat wire. The foot pedal can be used to switch the rotating direction. The transformer coil winding machine is also provided with a counter to count the turns.





Quick details of transformer coil winding machine



  • Center height 1000mm
  • Shaft size 50x50x3000mm
  • Motor power 7.5kw
  • Maximum capacity 3000kg



Main parameters of transformer coil winding machine



Typical standard specifications of GDY-5T are shown below, however these can be easily modified as requested.

Shaft Height from floor: 1000mm
Main Shaft Size: 50x50x3000mm
Flange Square Hole Size: 50x50mm
Winding Speed: 0-30rpm
Maximum Winding Width: 2800mm
Counting Range: 0-9999.9
Maximum Loading Capacity: 3000KG
Motor Power: 7.5KW
Total Weight: 1000 kg
Dimension(L*W*H): 4600x900x1400mm
