| Name: | Transformer Coil Winding Machine | Color: | As Requested |
|---|---|---|---|
| Application: | Winding Wire Coil | Control System: | PLC |
| Conductor Material: | Copper Or Aluminium Wire | Wire Type: | Flat Or Round Wire |
| Motor: | 5.5kw | Warranty: | 1 Year |
| Highlight: | 5x12mm power transformer winding machine,5.5kw STT transformer coil winding machine,5.5kw transformer winding machine |
||

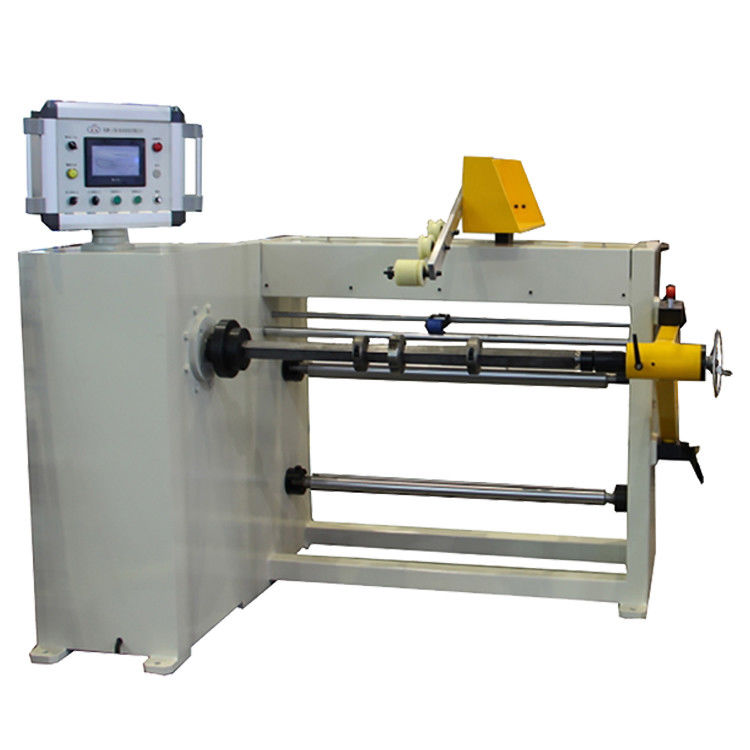

Heavy Duty 5.5kw Motor Driving Wire Winder Power Transformer Coil Winding Machine
Description of transformer coil winding machine ZPX1000
Automatic transformer coil winding machine ZPX1000, adopting automatic wire laying and tension technologies, is especially suitable for winding different shapes of coils. The coils can be used in transformers and other similar products. The transformer coil winding machine is provided with main winding motor, automatic wire laying unit, layer insulation unit, tension adjustable pay-off unit, pneumatic system, PLC based control system, and servo motors, etc. The transformer coil winding machine features slow starting, smooth running, high automation, full functions, and strong driving force, etc.
Main components of transformer coil winding machine
1. Main frame
2. Winding unit

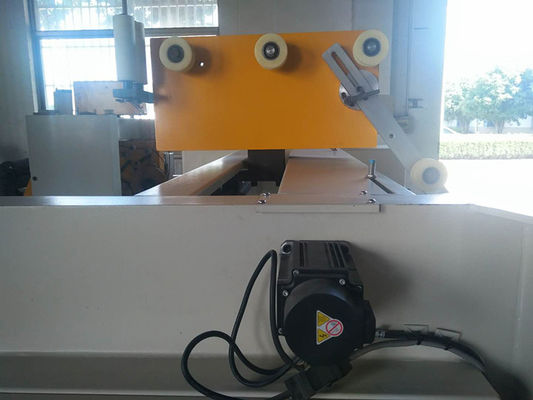

3. Automatic wire laying unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical parameters of transformer coil winding machine
Typical standard specifications of transformer coil winding machine ZPX1000 are shown below, however these can be easily modified as requested.
| Center Height: | 900mm |
| Shaft length: | 1300mm |
| Max. Winding Width: | 1000mm |
| Winding Power: | 5.5Kw |
| Winding Speed: | 0-160 rpm |
| Speed Regulation: | stepless speed regulation |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | 0.3-5.0mm |
| Max. Finished Coil OD.: | 800mm |
| Max. Loading Capacity: | 700kg |
| Automatic Wire Laying Function: | Min. spread pitch 0.01mm |
| Counting Mode: | 5-digit counting |
| Max. Numbers of Turns Preset: | 9999.9 |
| Counting Turn Range: | 0 - 9999.9 |
