Two Foil Decoiler Automatic Copper Foil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Transformer Foil Winding Machine | Usage: | Winding Foil Coil |
|---|---|---|---|
| Conductor Foil: | Copper Foil And Aluminium Foil | Foil Decoiler: | 2 Sets |
| Power: | 30kw | Rotating Speed: | 0 ~ 16 Rpm |
| Machine Color: | As Requested | Warranty: | 12 Months |
Two Foil Decoiler Automatic Copper Foil Winding Machine
Introduction of copper foil winding machine BRJ1600-2
Copper foil winding machine BRJ1600-2 is a professional conductor foil winder equipment. The copper foil winding machine can wind both copper foil and aluminium foil with thickness from 2.0mm to 3.0mm. The wound foil coil can be used in transformers and other similar products. The copper foil winding machine is provided with two foil decoilers and two insulation paper decoilers, which make the copper foil winding machine wind one or two layers of foil and one or two layers of insulation paper. The copper foil winding machine is provided with TIG welding unit, which make the copper foil winding machine weld foil and bus bar together. The copper foil winding machine features slow start, smooth running, easy operation and so on.
Main components of copper foil winding machine BRJ1600-2
- Main frame, strong structure
- Winding unit, 30kw motor driving
- Insulation decoiler, with high tension
- Cleaning system, pneumatic driving
- Cutting system, pneumatic driving
- Foil deburring system
- Edge alignment system, photoelectric sensing
- Automatic welding unit, TIG
- Electronic control system
- Pneumatic system
Technical Parameters of copper foil winding machine BRJ1600-2
Typical standard specifications of copper foil winding machine BRJ1600-2 are shown below and the copper foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,600mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular,etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Conductor Material OD.: | Ø1,000mm |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Diameter: | adjustable range Ø400 ~ 520mm |
| Max. Coil Weight: | 2,000KG |
| Welding Mode: | TIG |
| Cutting Mode: | Rolling shear |
| Insulation Decoiler Number: | 2 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Electronic Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Total Weight: | 9000Kg |
| Dimension(L x W x H): | 5800 x 3050 x 2500mm |

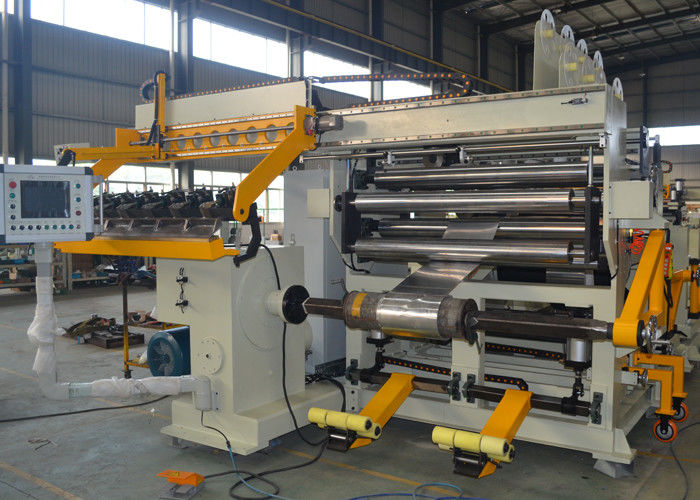

Fig 1: Copper foil winding machine BRJ1600-2's front view
Fig 2: Copper foil winding machine BRJ1600-2's TIG welding unit
