Automatic TIG Welding Copper Foil Winding Machine Cast Resin Transformer Winder

Automatic TIG Welding Copper Foil Winding Machine Cast Resin Transformer Winder

Automatic TIG Welding Copper Foil Winding Machine Cast Resin Transformer Winder
Automatic TIG Welding Copper Foil Winding Machine Cast Resin Transformer Winder
video play

Large Image :  Automatic TIG Welding Copper Foil Winding Machine Cast Resin Transformer Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: BRJ1400-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Copper Foil Winding Machine Usage: Winding Coil
Conductor: Cu / Al Strip Foil Decoiler: 2 Sets
Motor Power: 22kw Rotating Speed: 18 Rpm
Color: As Requested Warranty: One Year
High Light:

CE Copper Foil Winding Machine

,

18 rpm automatic transformer winding machine

,

18 rpm Copper Foil Winding Machine

Automatic TIG Welding Copper Foil Winding Machine Cast Resin Transformer Winder

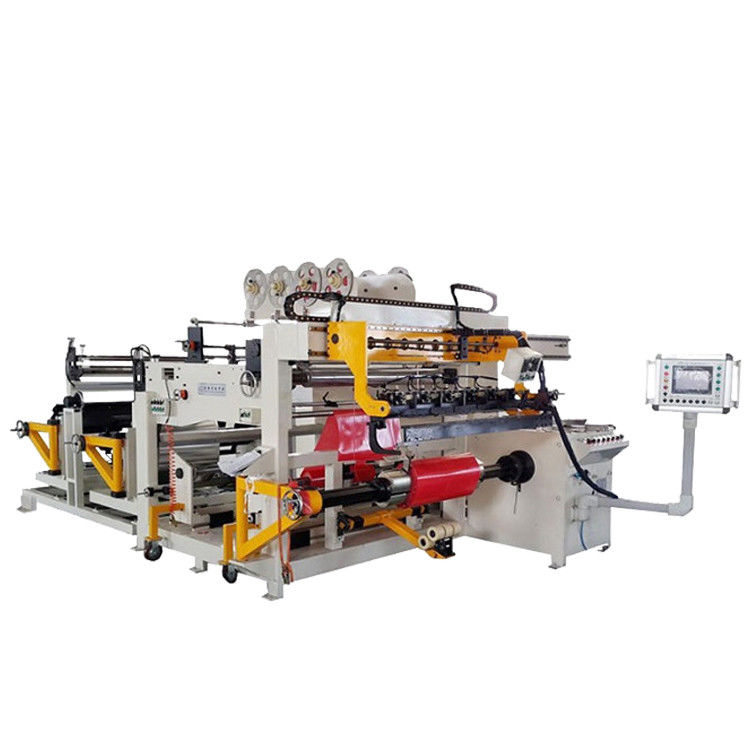

Description of copper foil winding machine BRJ1400-2



Cast resin transformer copper foil winding machine BRJ1400-2 is one professional equipment for winding coils for cast resin transformer and other similar products. This kind of copper foil winding machine can handle one or two layers of copper or aluminium strip with 300mm to 1400mm width. The copper foil winding machine can also handle one or two layers of layer insulation paper. Automatic TIG welding unit is used to weld the conductor foil with the bus bar together. Moreover, the copper foil winding machine can be customized, such as the foil decoiler expanding range. Usually, the foil decoiler expanding range is from 420 to 520mm, which is suitable for the conductor foil with inner diameter 500mm. The decoiler can be manufactured according to your needs.





Main Components of copper foil winding machine



1. Main frame, iron welded frame is very strong and stable

2. Winding unit, with 22kw motor, providing high torque

3. Foil decoiler, two foil decoiler suitable for conductor foil with inner diameter 500mm

4. Insulation decoiler, two insulation decoiler for placing insulation paer with ID 76mm OD 400mm

5. End-filling strip feeder, eight holder for end insulation filler

6. Cleaning system, two sets

7. Cutting system, one set

8. Foil deburring system, two sets.





Technical Parameters of copper foil winding machine



Typical standard specifications of copper foil winding machine BRJ1400-2 are shown below, however these can be easily modified as requested.



Max. Foil Width: 1,400mm
Max. Finished Coil OD.: 1,000mm
Finished Coil Shape: oval, round and rectangular,etc.
Conductor Foil Material: Copper or Aluminum
Conductor Material OD.: 1,000mm
Conductor Material ID.: 500mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Diameter: adjustable range 400-520mm
Max. Coil Weight: 2,500KG
Welding Mode: TIG
Cutting Mode: Electric disc shear
Insulation Decoiler Number: 2 pcs
End-filling Strip Feeder: 8 pcs
Edge Alignment System: Photoelectric sensing
Rectification Precision: ±0.5mm
Electronic Control System: PLC
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 - 9999.9
Total Weight: 8000Kg
Dimension(L*W*H) 5800*2850*2500mm
