Automatic Conductor Aluminium Foil And Copper Foil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Foil Winding Machine | Function: | Winding Foil Conductor |
|---|---|---|---|
| Foil Thickness: | 0.2 ~ 3.0mm | Foil Decoiler: | 1 Set |
| Welding: | Cold Pressure Welding | Motor: | 5.5KW |
| Machine Color: | As Requested | Warranty Time: | 12 Months |
Automatic Conductor Aluminium Foil And Copper Foil Winding Machine
Description of copper foil winding machine BRJ200
Automatic copper foil winding machine BRJ200 is a professional foil foil winders for winding transformer coils and other similar products. This kind of foil winding machine is provided with one foil decoiler, which makes the machine wind one layer of foil. With two insulation paper decoilers, the copper foil winding machine can wind one or two layers of insulation paper at once. With cold pressure welding, the copper foil winding machine can weld bus bar and foil together. The copper foil winding machine is driven by servo motor, which guarantees all actions of the machine are precise. The foil winding machine is provided with PLC control system. With HMI, the copper foil winding machine can be operated easily.
Main components of copper foil winding machine BRJ200
1. Main frame
2. Foil conductor decoiler
3. Roller
4. Winding unit
5. Insulation decoiler
6. Photoelectric sensor
7. Cold press welding unit
8. Pneumatic unit
Technical parameters of copper foil winding machine BRJ200
Typical standard specifications of copper foil winding machine BRJ200 are shown below and the copper foil winding machine can also be manufactured as requested.
| Maximum foil width: | 200mm |
| Finished Coil OD. ( excl. Bus bar ): | Ø 600mm |
| Finished Coil OD. ( incl. Bus bar ): | Ø 700mm |
| Finished coil Shape: | Circle, Oval and Rectangle etc. |
| Conductor Material: | Copper or aluminum strip |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | Ø 500mm |
| Foil Material OD.: | Ø 1000mm, Maximum |
| Foil Decoiler Number: | 1 pcs |
| Foil Decoiler Length: | 250mm |
| Foil Decoiler Expanding Range: | Ø 420 ~ 520mm |
| Maximum Coil Weight: | 750kg |
| Rectifying Mode: | Photoelectric sensing |
| Insulation Paper Decoiler Number: | 1set |
| Insulation Paper Coil OD.: | Ø 400mm, maximum |
| Insulation Paper Coil ID.: | Ø 76mm |
| Insulation Decoiler Width | 250mm |
| Insulation Paper Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Winding Speed: | 0 ~ 60rpm |
| Winding Power of Servo Motor: | 5.5kw |
| Welding Device: | Cold welding |
| Control System: | PLC |
| Operation Interface: | Touch screen |

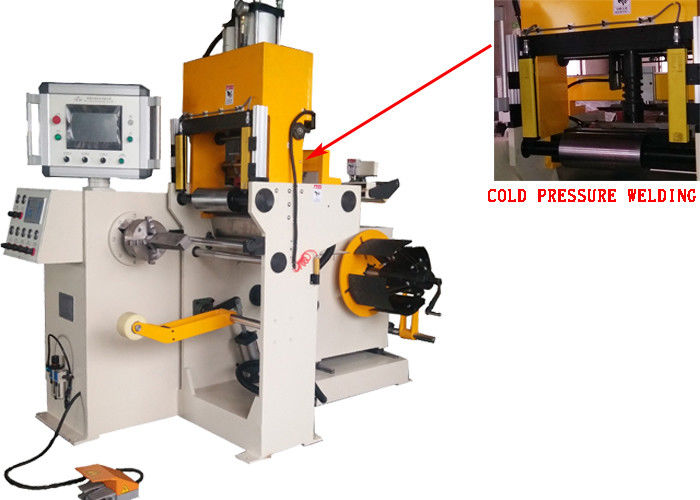

Fig 1: Copper foil winding machine BRJ200's full view
Fig 2: Copper foil winding machine BRJ200's back view
