Description of foil winding machine BRJ300-2

Copper foil winding machine BRJ300-2 is for winding transformer foils and other similar products. The foil winding machine can handle one or two layers of copper or aluminium foils and one or two layers of insulation paper. With cold welding unit, the machine can weld different materials together, for example, welding copper bus bar and aluminium foil together, etc. The control system is based on PLC, which makes the machine with programmable function to wind different specifications of coil.


Main components of copper foil winding machine BRJ300-2

1. Main steel welded frame
2. Two foil decoilers
3. Two foil feeder
4. Pressing roller
5. Winding unit
6. PLC based control system
7. Pneumatic system


Technical parameters

Typical standard specifications of copper foil winding machine BRJ300-2 are shown below, however these can be easily modified as requested.

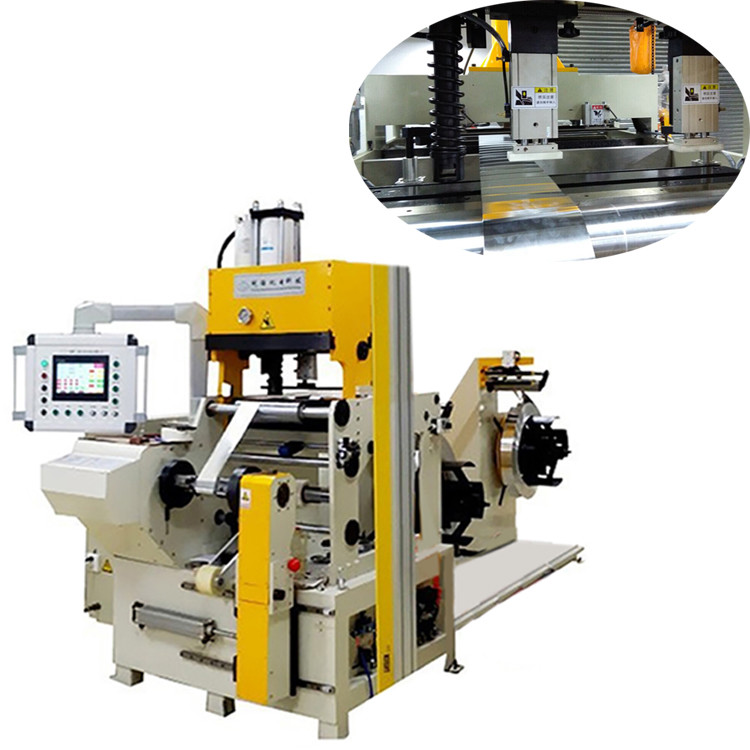

Fig 1: Copper foil winding machine BRJ300-2's front view


Fig 2: Copper foil winding machine BRJ300-2's cold pressure welding unit
