2-head Wire Winder Automatic Coil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Automatic Coil Winding Machine | Usage: | Making Transformer Coil |
|---|---|---|---|
| Winding Power: | 7.5kw | Rotating Speed: | 0 ~ 160rpm |
| Conductor: | Cu Or Al Wire | Wire Type: | Flat Or Round Wire |
| Control System: | PLC | Wire Guide: | 2 Pcs |
2-head Wire Winder Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX500-2
Automatic coil winding machine ZPX500-2 is a professional high efficiency wire coil winder equipment. This kind of automatic coil winding machine is provided with two wire guides, which make the coil winding machine wind two coils at once. The wire guides are driven by a servo motor. The control system of the automatic coil winding machine is based on PLC. With HMI, the coil winding machine features easy operation and so on.
Main Features of automatic coil winding machine ZPX500-2
Automatic coil winding machine ZPX500-2 is provided with a 7.5kw motor, which provides strong pulling force.The automatic coil machine features slow starting, smooth running, full function, high automation, etc.
Main Parameters of automatic coil winding machine
Typical standard specifications of automatic coil winding machine ZPX500-2 are shown below and the coil winding machine can also be manufactured as requested.
| Center Height From Floor: | 900mm |
| Finished Coil Number Max: | 2 pcs |
| Max. Each Coil Height: | 500mm |
| Rotating Shaft Length: | 1200mm |
| Max. Flat Wire Size: | 5x12mm |
| Round Wire Diameter: | Ø0.3 ~ 5.0mm |
| Max. Rotating OD.: | 800mm |
| Winding Speed: | 0 ~ 160RPM |
| Speed Regulation: | stepless speed regulation |
| Winding Power: | 7.5KW |
| Spread Pitch min: | 0.01mm |
| Counting Mode: | 5-digit counting |
| Counting Range: | 0 - 9999.9 |

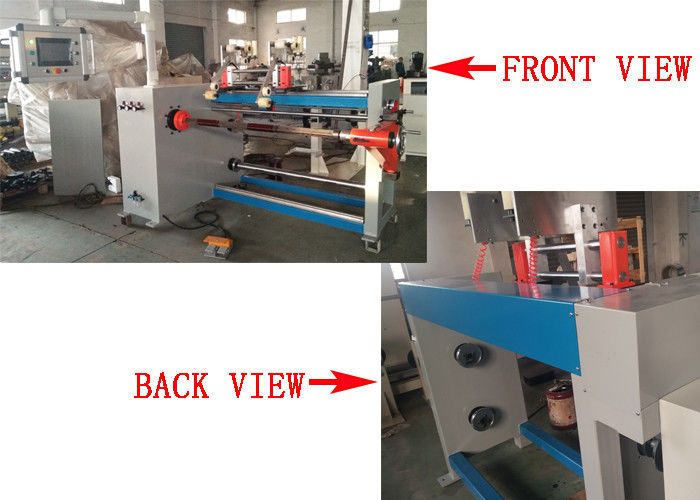

Fig 1: Automatic coil winding machine ZPX500-2's front view
Fig 2: Automatic coil winding machine ZPX500-2's wire guide
