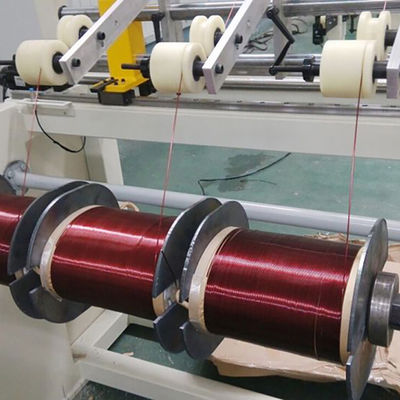

160rpm Auto Coil Winding Machine Three Wire Guides

160rpm Auto Coil Winding Machine Three Wire Guides

160rpm Auto Coil Winding Machine Three Wire Guides
160rpm Auto Coil Winding Machine Three Wire Guides 160rpm Auto Coil Winding Machine Three Wire Guides

Large Image :  160rpm Auto Coil Winding Machine Three Wire Guides Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX400-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Coil Winding Machine Usage: Winding Wire Coil
Motor Power: 7.5kw Winding Speed: 0- 160rpm
Wire Material: Cu Or Al Wire Wire Type: Flat Or Round Wire
Wire Size: 0.3mm - 5.0mm Warranty: 12 Months
High Light:

160rpm auto coil winding machine

,

7.5kw motor winding machine automatic

,

auto coil winding machine Three Wire

High Effective PLC Control System Three Wire Guides Automatic Coil Winding Machine





Description



High effective PLC control system three wire guide automatic coil winding machine ZPX400-3 is one kind of high effective coil winding machine. The kind of automatic coil winding machine can be used to wind three same specifications of coil with max height 400mm. The coil can be used in transformers and other similar products. The foot pedal can be used to switch the rotating direction of the automatic coil winding machine’s winding shaft. The touch screen of the automatic coil winding machine is very intuition for inputting parameters. The automatic coil winding machine’s three wire guides are driven by a servo motor, which guarantees the excellent start and stop action and assures high quality laying wire.





Main Features of automatic coil winding machine

  • Slow starting
  • Smooth running
  • Full function
  • Widely used
  • Simple operation
  • High automation



Technical Parameters of the automatic coil winding machine



Typical standard specifications of the automatic coil winding machine ZPX400-3 are shown below, however these can be easily modified as requested.

  • Center height: 900mm
  • Rotating diameter max. 800mm
  • Winding shaft size 40x40x1500mm
  • Round wire diameter 0.3-4.0mm
  • Max. each finished coil height 400mm
  • Max number of finished coil 3 pcs
  • Number of insulation decoiler 1 pc
  • Winding motor power 7.5kw
  • Rotating speed 0-160 rpm
  • Control system PLC
  • Minimum spread pitch 0.01mm
  • Counting range 0-9999.99
