| Name: | Automatic Coil Winding Machine | Application: | Winding Transformer Coil |
|---|---|---|---|
| Wire Type: | Round Or Flat | Wire Material: | Cu Or Al |
| Round Wire Size: | 0.3- 5.0mm | Flat Wire Size: | 5x12mm |
| Winding Power: | 7.5kw | Winding Speed: | 60rpm |
| Highlight: | Transformer Automatic Coil Winding Machine,60rpm Automatic Coil Winding Machine,7.5kw automatic motor winding machine |
||

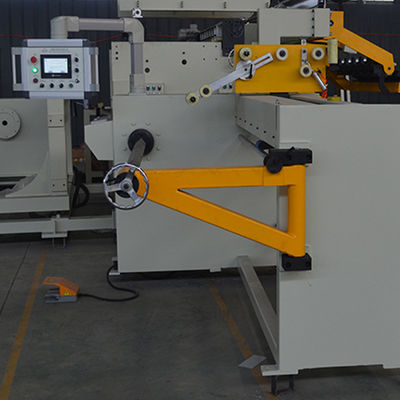

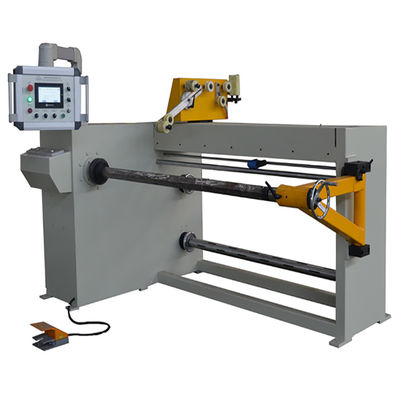

Heavy Duty Big Sized Oil Type Transformer Automatic Coil Winding Machine
Automatic Coil Winding Machine Description
Heavy duty big sized oil type transformer automatic coil winding machine ZPX1400 is one kind of automatic wire winding machine. This kind of automatic coil winding machine is mainly used to wind oil type transformer coil and other similar products. The automatic coil winding machine can be used to wind the transformer coil with maximum height 1400mm. The automatic coil winding machine can be used to wind not only round wire but also flat wire. Control system is based on PLC, which guarantees the automatic coil winding machine high automation. With different parameters input, the automatic coil winding machine can be used to wind different specifications of coils easily.
Main Features of automatic coil winding machine
Technical Parameters of automatic coil winding machine
Typical standard specifications of automatic coil winding machine ZPX1400 are shown below, however these can be easily modified as requested.
| Center Height: | 900mm |
| Winding Shaft Size: | 50x50x1700mm |
| Insulation Decoiler Quantity: | 1 pc |
| Winding Power: | 7.5Kw |
| Winding Speed: | 0～60 Rpm |
| Speed Regulation: | stepless speed regulation |
| Maximum Rectangular Wire Size: | 5x14mm |
| Round Wire Diameter: | 0.3 ～ 5.0mm |
| Maximum Wound Coil Height: | 1400mm |
| Maximum Coil Weight: | 1000kg |
| Counting Mode: | 5-digit counting |
| Max. Turns Preset Number: | 9999.9 |
| Counting Range: | 0 ～ 9999.9 |
