Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Coil Winding Machine | Application: | Making Coil |
|---|---|---|---|
| Motor Power: | 4kw | Rotating Speed: | 0- 200rpm |
| Conductor: | Cu Or Al Wire | Wire Type: | Flat Or Round Wire |
| Color: | RAL9002 | Warranty: | 12 Months |
| High Light: | Automatic Transformer Coil Winding Machine,200rpm auto coil winding machine,Oil Type Transformer Coil Winding Machine |
||

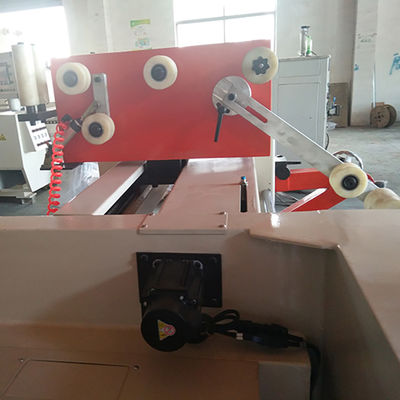

Oil Type Transformer Automatic Coil Winding Machine Servo Motor Driving Wire Guide
Introduction of automatic coil winding machine

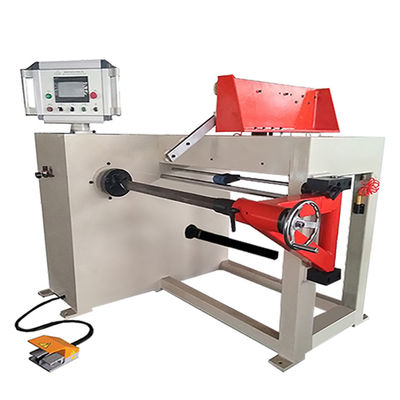

Oil type transformer automatic coil winding machine ZPX600 is widely used to wind transformer coil and other similar products. The automatic coil winding machine can be used to wind not only round wire but also flat wire. The automatic coil winding machine is controlled by PLC. With a touch screen, the automatic coil winding machine can wind different size of coil automatically after inputting corresponding parameters. The maximum width of the coil wound by the automatic coil winding machine is 600mm. The winding speed of the automatic coil winding machine is 200rpm. The automatic coil winding machine features easy operation, high automation and so on.
Main Features of the automatic coil winding machine
Main Parameters of the automatic coil winding machine
| Center height: | 900mm |
| Square Shaft Size: | 40x40x900mm |
| Finished Coil Height: | 600mm max. |
| Servo Motor Power: | 0.75kw |
| Winding Speed: | 0 - 200 rpm |
| Speed Regulation: | stepless speed regulation |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire: | 0.3-5.0mm |
| Finished Coil OD.: | 600mm max |
| Max. Loading Capacity: | 200kg |
| Automatic Wire Laying Function: | Min. spread pitch 0.01mm |
| Counting Mode: | 5-digit counting |
| Max. Numbers of Turns Preset: | 9999.9 |
| Counting Turn Range: | 0 - 9999.9 |
