| Product Name: | Transformer Coil Winding Machine | Funciton: | Winding Wire Coil |
|---|---|---|---|
| Conductor: | Aluminium Or Copper Wire | Conductor Type: | Round Or Flat Wire |
| Round Wire: | ∅0.3 - 4.0mm | Flat Wire Size: | Maximum 3x10mm |
| Color: | Customizable | Warranty: | 12 Months |
| Highlight: | 400mm copper coil winding machine,3x10mm Copper Wire Winder,STT Automatic copper coil winding machine |
||
Copper Wire Winder 400mm Winding Width Automatic Coil Winding Machine
Description of automatic coil winding machine
Automatic coil winding machine ZPX400 is a professional equipment for winding transformer coil and other similar products. Not only aluminium or copper round wire but also aluminium or copper flat wire can be wound by the automatic coil winding machine. With PLC and a touch screen, the automatic coil winding machine can wind different size of coil automatically as per preset corresponding parameters. The maximum width of the coil wound by the automatic coil winding machine is 400mm. The automatic coil winding machine features easy operation, high automation and so on.
Main Features of the automatic coil winding machine
Main Parameters of the automatic coil winding machine
| Center height: | 900mm |
| Square Shaft Size: | 40x40x700mm |
| Maximum Winding Width: | 400mm |
| Servo Motor Power: | 0.75kw |
| Rotating Speed: | 0 - 200 rpm |
| Motor Power: | 3kw |
| Speed Regulation: | stepless speed regulation |
| Maximum Flat Wire Size: | 3X10mm |
| Round Wire Diameter: | 0.3-4.0mm |
| Maximum Rotating OD.: | 500mm max |
| Maximum Capacity: | 200kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting: | 5-digit counting |
| Maximum Turns Preset: | 9999.9 |
| Counting Range: | 0 - 9999.9 |

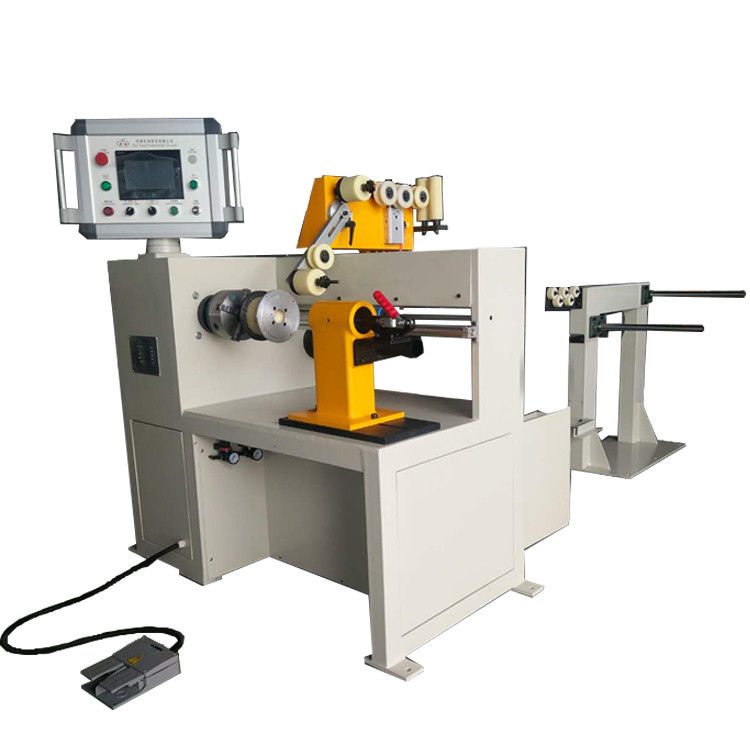

Fig 1: Automatic coil winding machine ZPX400's full view
Fig 2: Automatic coil winding machine ZPX400's four-jaw chuck
