3-head Copper Wire Winder devanadera Automatic Coil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Winding Power: | 7.5kw | Winding Speed: | 0 ~ 80rpm |
| Wire: | Copper Or Aluminium Wire | Wire Type: | Flat Or Round Wire |
| Round Wire Dia: | 0.3mm ~ 5.0mm | Max Flat Wire: | 5x12mm |
3-head Copper Wire Winder devanadera Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX500-3
Automatic coil winding machine ZPX500-3 is a professional high effective wire coil winder equipment. This kind of automatic coil winding machine is provided with three wire guides, which makes the coil winding machine wind three coils with maximum height 500mm at the same time. The three wire guides of the automatic coil winding machine are driven by a servo motor. The automatic coil winding machine is provided with PLC control system. The foot pedal of the automatic coil winding machine is with the functions of stopping and starting the machine and switching the rotating direction. The coil winding machine features slow starting, smooth running, big torque and high automation etc.
Main features of automatic coil winding machine ZPX500-3
- Slow starting
- Smooth running
- Full function
- Servo motor driven wire guide
- Simple operation, accuracy and reliability
- High automation
Technical parameters of automatic coil winding machine ZPX500-3
Typical standard specifications of automatic coil winding machine ZPX500-3 are shown below and the coil winding machine can also be manufactured as requested.
| Center height: | 900mm |
| Maximum winding diameter: | 800mm |
| Insulation decoiler: | 1 pc |
| Winding shaft size: | 40x40x1500mm |
| Round wire diameter: | Ø0.3 ~ 5.0mm |
| Maximum flat wire size: | 5x12mm |
| Main winding power: | 7.5kw |
| Winding speed: | 1 ~ 80rpm |
| Control system: | PLC |
| Counting range: | 0 ~ 9999.99 |

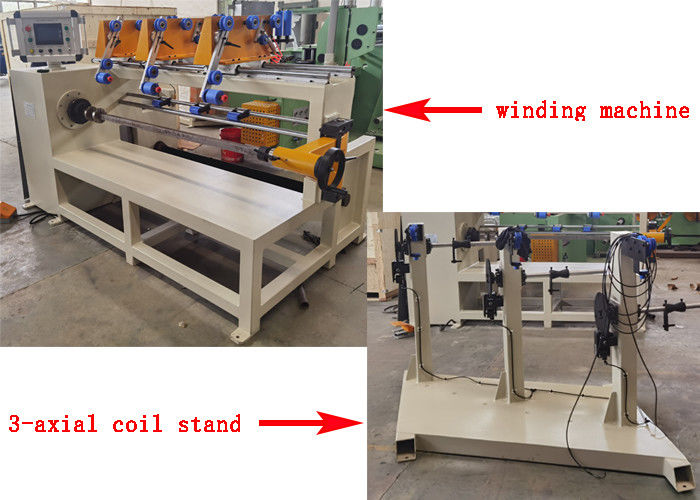

Fig 1: Automatic coil winding machine ZPX500-3's full view
Fig 2: Automatic coil winding machine ZPX500-3's coil stand
