1000mm Central Height Transformer Coil Winding Machine Transformer Wire Coil Winder

Transformer Wire Coil Winder 1000mm Central Height Transformer Coil Winding Machine

Description of transformer coil winding machine GDY-3T

Transformer coil winding machine GDY-3T is one kind of semi automatic wire coil winders. This transformer coil winding machine can be used to wind copper wire or aluminium wire to make different kinds wire coils, and the wound coils can be used to make oil immersed transformers or other similar products. The transformer coil winding machine is provided with one 7.5kw winding motor to provide big torque to drive the winding shaft. With a digital counter, the transformer coil winding machine can count the turns when winding. The transformer coil winding machine is very easy to be operated, only need preset the number of turns and press the foot pedal, the transformer coil winding machine can wind the wire automatically and stop winding when finishing winding the number of turns preset. The transformer coil winding machine features easy to operate.

Main components of transformer coil winding machine GDY-3T

• Main frame
• Square shaft
• Split tailstock
• Foot pedal
• Counter
• Control board

Main parameters of transformer coil winding machine GDY-3T

Typical standard specifications of transformer coil winding machine GDY-3T are shown below, however, the coil winding machine can also be manufactured as requested.

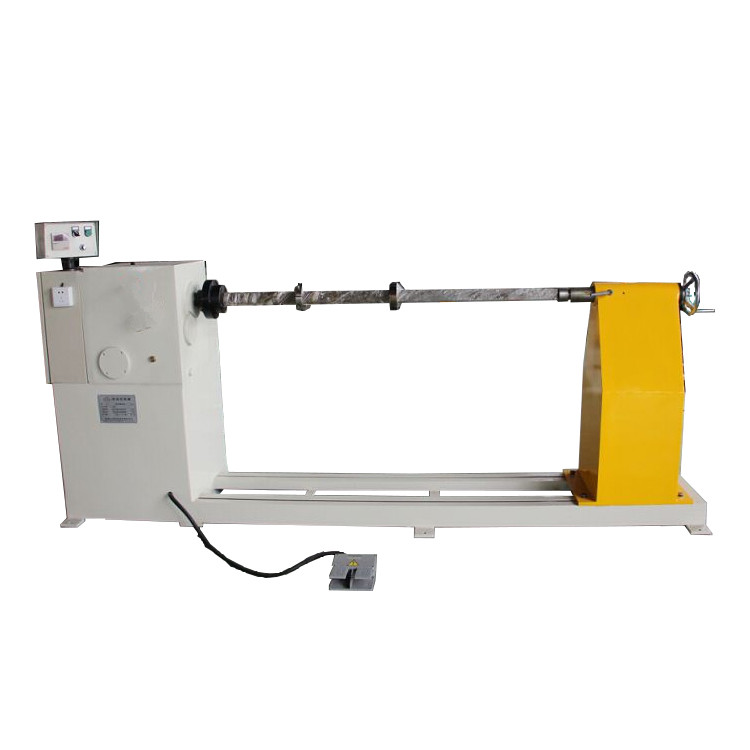

Fig 1: Transformer coil winding machine GDY-3T's full view

Fig 2: Transformer coil winding machine GDY-3T's control panel
