Automatic Transformer Coil Winding Machine With PLC Control System
Quick Detail:
1) Winding width 250mm
2) Center height 900mm
3) Winding power 2.2kw
4) Winding speed 200rpm
5) Customized color
6) Warranty period 12 months
Description
Automatic Transformer Coil Winding Machine With PLC Control System ZPX250 is a special winding equipment for winding small coils and other similar products. The transformer coil winding machine adopts a 2.2 kw motor to drive the winding shaft to wind round or flat wire. A servo motor of the transformer coil winding machine is also used to drive wire guide for laying wire when winding. The transformer coil winding machine is provided with main winding motor, servo motor, VFD, and so on. With the control system based on PLC, the transformer coil winding machine can run automatically as per the preset parameters.
Technical Parameters
Typical standard specifications of ZPX250 are shown below, however these can be easily modified as requested.
| Center Height: | 900mm |
| Tailstock: | Live center |
| Winding Motor: | 2.2kw |
| Rotating Speed: | 0-150 rpm |
| Speed Regulation: | stepless speed regulation |
| Control System: | PLC |
| Round Wire: | 0.3-4.0mm |
| Max. Flat Wire: | 2x8mm |
| Max Winding Height: | 250mm |
| Max Rotation Diameter: | 400mm |
| Automatic Wire Laying Function: | Min. Spread Pitch: 0.01mm |
| Basic Function: | 5-digit counting, turn number preset by segments, total turn number preset, reversible counting, and power off memory, etc. |
| Counting Turn Range: | 0 - 9999.9 |
| Number of Saved Winding Programs: | more than 50 pcs |
| Machine Weight: | 500kg |
| Machine Dimension(L*W*H): | 1200*900*1500mm |

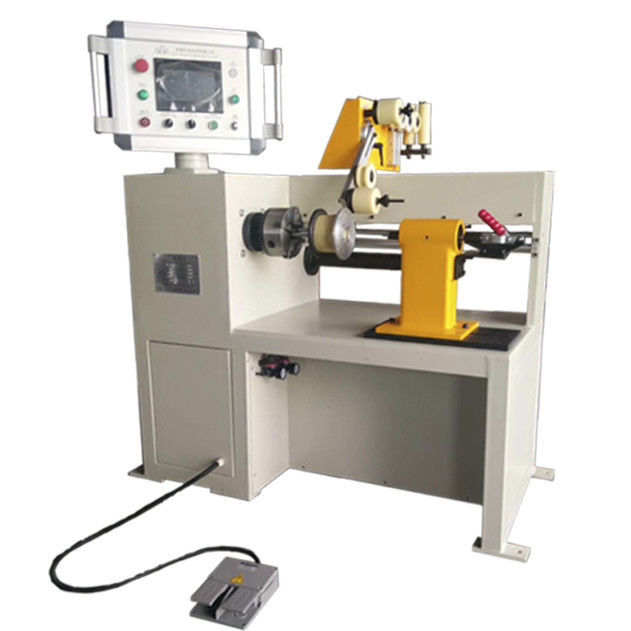

Fig 1: Automatic coil winding machine ZPX250's full view
Fig 2: Automatic coil winding machine ZPX250's wire guide
