3 Wire Guides PLC Transformer Coil Winding Machine Automatic

Three Wire Guides Transformer Coil Winding Machine Automatic

Description of transformer coil winding machine ZPX150-3

Automatic transformer coil winding machine ZPX150-3 is a special winding equipment for winding transformer coils and other similar products. With three wire guides, the transformer coil winding machine can be used to winding three coils at once, which significantly improve production effectiveness. The transformer coil winding machine can wind not only three coils with maximum length 150mm per coil, but also one coil with maximum length about 500mm.

Quick details of transformer coil winding machine ZPX150-3

• Winding copper or aluminium wire
• Three wire guides
• Winding width 150mm
• Winding three coils at one time
• Winding power 4kw
• Customized color

Technical parameters of transformer coil winding machine ZPX150-3

Typical standard specifications of ZPX150-3 are shown below, however these can be easily modified as requested.

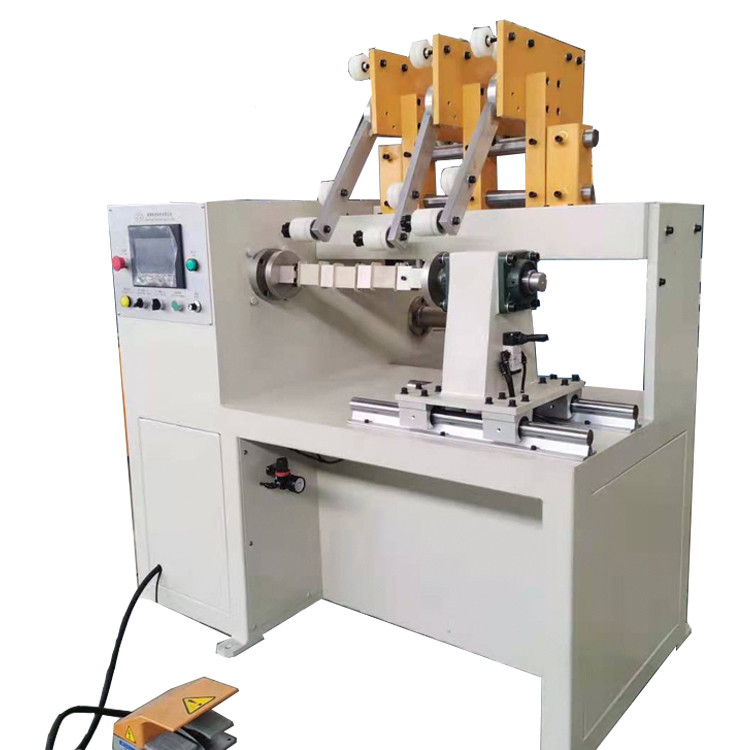

Fig 1: Transformer coil winding machine ZPX150-3's full view

Fig 2:Transformer coil winding machine ZPX150-3's back view
