5.5kw Motor Driving Wire Winder Power Transformer Winding Machine

Heavy Duty 5.5kw Motor Driving Wire Winder Power Transformer Coil Winding Machine

Description of transformer coil winding machine ZPX1000

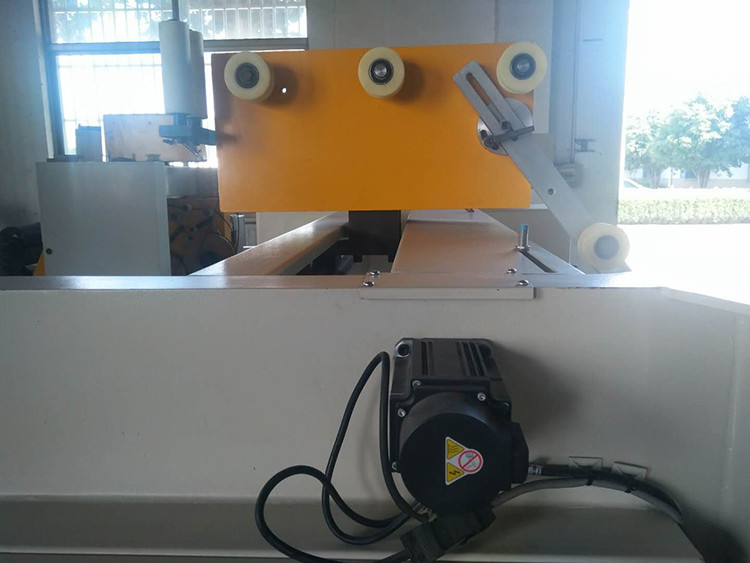

Automatic transformer coil winding machine ZPX1000, adopting automatic wire laying and tension technologies, is especially suitable for winding different shapes of coils. The coils can be used in transformers and other similar products. The transformer coil winding machine is provided with main winding motor, automatic wire laying unit, layer insulation unit, tension adjustable pay-off unit, pneumatic system, PLC based control system, and servo motors, etc. The transformer coil winding machine features slow starting, smooth running, high automation, full functions, and strong driving force, etc.

Main components of transformer coil winding machine

1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system

Technical parameters of transformer coil winding machine

Typical standard specifications of transformer coil winding machine ZPX1000 are shown below, however these can be easily modified as requested.
