7.5kw Automatic Coil Winding Machine High Effective Electric Wire Winder

High Effective Electric Wire Winder Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX500-2

Automatic coil winding machine ZPX500-2 is one kind of high efficiency wire coil winders. With two wire guides, the kind of automatic coil winding machine can wind two coils at once, which greatly improves production efficiency. With servo motor driving wire guides, the automatic coil winding machine can lay the wires precisely. The automatic coil winding machine is with a control system based on PLC, which make the coil winding machine high automation. It is easy to operate the coil winding machine.

Main Features of automatic coil winding machine ZPX500-2

Automatic coil winding machine ZPX500-2 is provided with a 7.5kw motor, which provides strong pulling force.The automatic coil machine features slow starting, smooth running, full function, high automation, etc.

Main Parameters of automatic coil winding machine

Typical standard specifications of automatic coil winding machine ZPX500-2 are shown below, however these can be easily modified as requested.

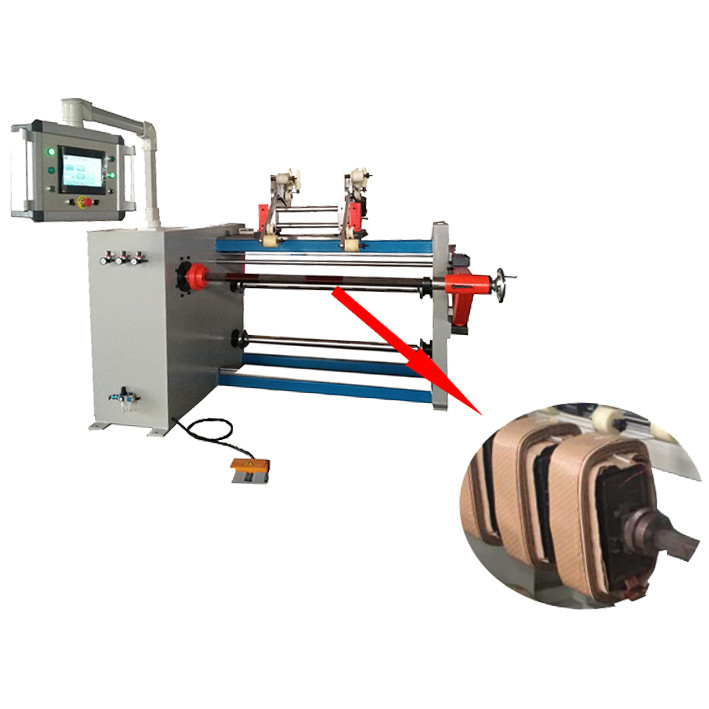

Fig 1: Automatic coil winding machine ZPX500-2's front view

Fig 2: Automatic coil winding machine ZPX500-2's wire guide
