Name: Movable Tailstock Automatic Transformer Coil Winding Machine Oil Type
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: ZPX800
Price: 10,000.00 USD
Availability: InStock

Movable Tailstock Automatic Transformer Coil Winding Machine Oil Type

1 set

MOQ

negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Machine Name: Transformer Coil Winding Machine

Applicaiton: Winding Transformer Wire Coil

Winding Motor: 4kw

Winding Speed: 0 - 160rpm

Conductor: Cu Wire Or Al Wire

Conductor Type: Flat Wire Or Round Wire

Tailstock: Movable

Winding Shaft: 40x40mm

Highlight:

Tailstock Transformer Coil Winding Machine

Oil Type motor winding machine automatic

160rpm Transformer Coil Winding Machine

Basic Infomation

Place of Origin: China

Brand Name: STT

Certification: CE

Model Number: ZPX800

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 35 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Gallery

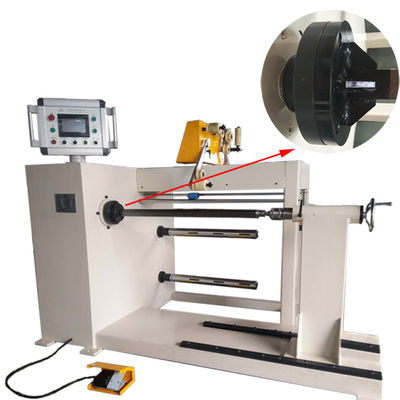

Movable Tailstock Automatic Transformer Coil Winding Machine Oil Type

Product Description

Movable Tailstock PLC Control Oil Type Transformer Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX800

PLC control oil type transformer coil winding machine ZPX800 is mainly used to wind oil type transformer coils and other similar products. The automatic coil winding machine is provided with a movable tailstock, which can be moved according to the size of the wound coil. Touch screen of the automatic coil winding machine is very intuitive to input corresponding parameters. Foot pedal of the automatic coil winding machine can be used to not only start or stop the machine but also switch the rotating direction.

Features of automatic coil winding machine ZPX800

slow starting,
smooth running,
full function,
high automation, etc.
PLC control system
50+ winding programs stored

Main Parameters of automatic coil winding machine ZPX800

Center Height:	900mm
Winding Shaft Size:	40x40x1100mm
Max. Winding Width:	800mm
Winding Motor Power:	4kw
Winding Speed:	0-160 rpm
Maximum Flat Wire Size:	5X12mm
Round Wire Diameter:	0.3-5.0mm
Max. Finished Coil OD.:	800mm
Max. Capacity:	700kg
Automatic Wire Laying Function:	Min. spread pitch 0.01mm
Counting Mode:	5-digit counting
Max. Numbers of Turns Preset:	9999.9
Counting Turn Range:	0 - 9999.9
