Automatic Cold Pressure Welding Copper Foil Winding Machine

Description of copper foil winding machine BRJ200

Automatic copper foil winding machine BRJ200 is a special foil winder for winding conductor copper or aluminium foil. With cold pressure welding device, this kind of foil winding machine can weld copper bus bar and copper foil or weld copper bus bar and aluminium foil together. The foil winding machine is driven by servo motor, which makes sure all actions of the machine are precise. With a touch screen, it is very easy to operate the foil winding machine

Main components of copper foil winding machine BRJ200

1. Main frame

2. Foil conductor decoiler

3. Roller

4. Winding unit

5. Insulation decoiler

6. Photoelectric sensor

7. Cold press welding unit

8. Pneumatic unit

Technical parameters of copper foil winding machine BRJ200

Typical standard specifications of copper foil winding machine BRJ200 are shown below, however, the copper foil winding machine can also be manufactured as requested.

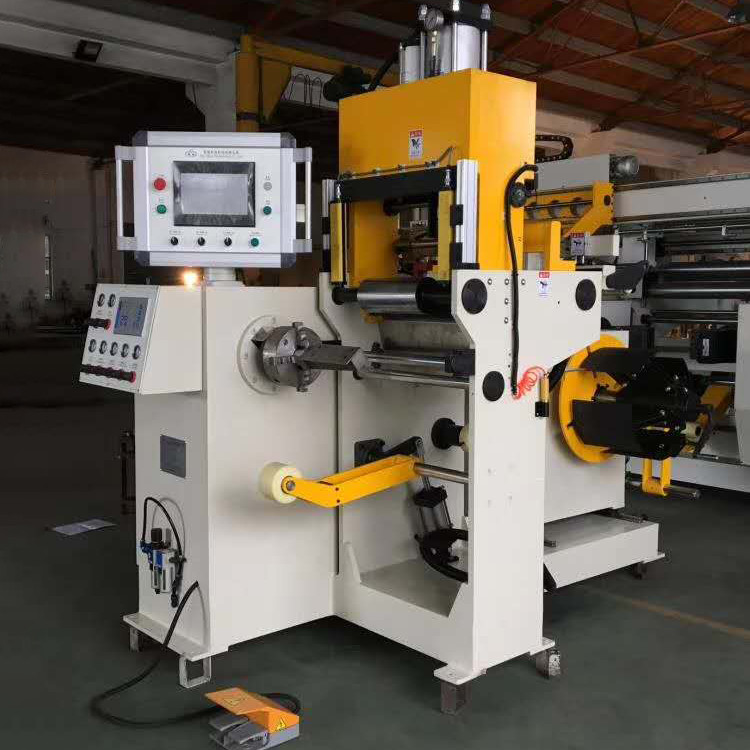

Fig 1: Copper foil winding machine BRJ200's full view

Fig 2: Copper foil winding machine BRJ200's back view
