Description of transformer foil winding machine BRJ300-2

Transformer foil winding machine BRJ300-2 is one of professional conductor film winder. The transformer foil winding machine is mainly used to wind copper or aluminium foil to make transformer coils and other similar products. The transformer foil winding machine can wind one or two layers of copper or aluminium foils and one or two layers of insulation paper. With a cold welding unit, the foil winding machine can weld different material of foil and bus bar together. The transformer foil winding machine is provided with a foot pedal for controlling the machine to run or stop and switching the rotating direction. The transformer foil winding machine features slow starting, smooth running, and easy to operate etc.

Main Components of transformer foil winding machine BRJ300-2

1. Main steel welded frame

2. Foil decoiler

3. Foil feeder

4. Pressing roller

5. Main winding unit

6. PLC based control system

7. Pneumatic system

Technical Parameters

Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below, however, the foil winding machine can also be manufactured as requested.

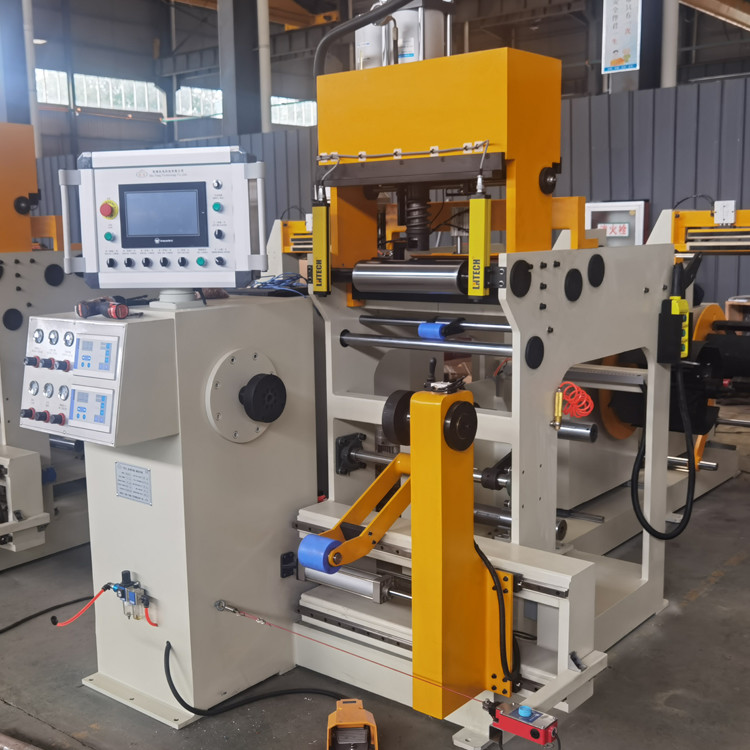

Fig 1: Transformer foil winding machine BRJ300-2's full view

Fig 2: Transformer foil winding machine BRJ300-2's welding effect
