| Name: | Transformer Foil Winding Machine | Usage: | Making Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Max. Foil Width: | 1000mm | Color: | As Requested |
| Winding Motor Power: | 15kw | Max. Winding Speed: | 18rpm |
| High Light: | Cast Resin Transformer Winding Machine,15kw Transformer Foil Winding Machine,18rpm Transformer Foil Winding Machine |
||
Factory Direct Selling Cast Resin Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1000-2
transformer foil winding machine BRJ1000-2 is a special equipment for winding copper film strip or aluminium film strip, which can be used to make dry transformer coil and other similar products. This kind of transformer foil winding machine can be used to wind the film strip with maximum width 1000mm, the thickness of copper film strip is from 0.2 to 2.0mm and the thickness of aluminium film strip is from 0.3 to 3.0mm. The main winding power of the kind of transformer foil winding machine is 15KW, which can provide enough torque to wind foil and insulation paper together. With TIG welding unit, the transformer foil winding machine can weld foil and bus bar together.
Quick details of transformer foil winding machine BRJ1000-2
1) Two foil decoilers
2) Two insulation decoilers
3) End-fill strip feeder
4) Cleaning system
5) Foil deburring system
6) Cutting foil system
7) Edge alignment system
8) TIG welding unit
Technical Parameters of transformer foil winding machine BRJ1000-2
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below, however these can be easily modified as requested.

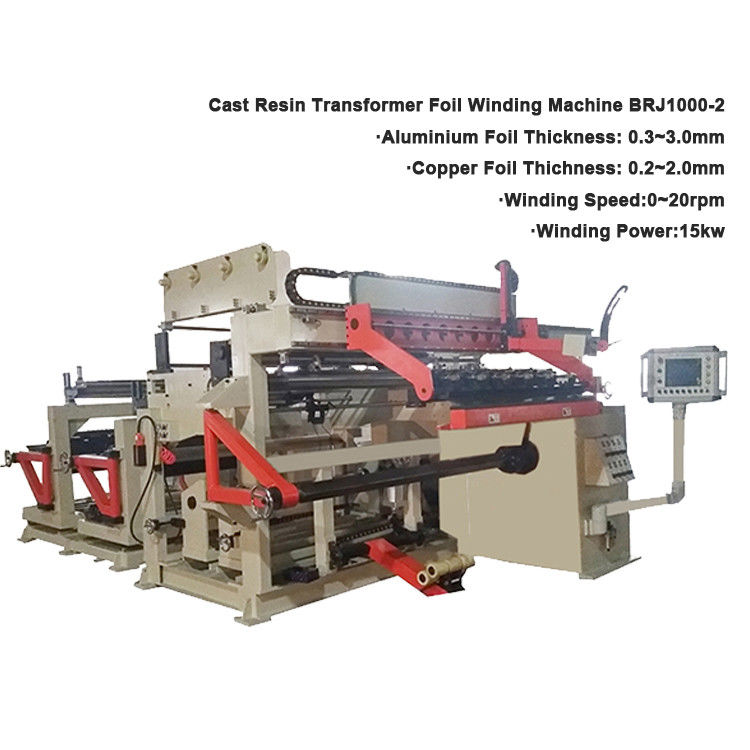

Fig 1: Transformer foil winding machine BRJ1000-2's front view
Fig 2: Transformer foil winding machine BRJ1000-2's back view
