Automatic Dry Type Transformer Foil Winding Machine Programmable

1 set
MOQ
negotiable
Price
Automatic Dry Type Transformer Foil Winding Machine Programmable
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Transformer Foil Winding Machine
Usage: Winding Dry Transformer Coil
Foil Width: Maximum 600mm
Foil Conductor: Copper And Aluminium Foil
Motor Power: 11kw
Rotating Speed: Maximum 26rpm
Color: As Requested
Warranty: 12 Months
Highlight:

600mm Dry Type Transformer Foil Winding Machine

,

11kw 26rpm automatic transformer winding machine

,

26rpm Transformer Foil Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ600-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Programmable PLC Control Automatic Dry Type Transformer Foil Winding Machine


Description of transformer foil winding machine BRJ600-2

Automatic dry type transformer foil winding machine BRJ600-2 is for winding foil coils to make dry type transformer. TIG welding unit is adopted to weld foil and bus bar together. The foil winding machine can be used to wind not only copper foil but also aluminium foil. The maximum width of the foil wound by the transformer foil winding machine is 600mm.


Quick details of transformer foil winding machine BRJ600-2


  • Maximum foil width 600mm
  • TIG welding
  • Cu foil thickness 0.2 - 2.0mm
  • Al foil thickness 0.3 - 3.0mm
  • Two foil decoilers
  • Two insulation decoilers
  • Winding motor power 11kw
  • Rotating speed 26rpm



Main parameters of transformer foil winding machine BRJ600-2


Coil Shape:oval, circle and rectangular
Foil Material OD.:1,000mm
Foil Material ID.:500mm
Conductor Decoiler Number:2 pcs
Conductor Decoiler Length:650mm
Decoiler Expanding Range:400-520mm
Winding Power:11KW
Winding Shaft Size:80×80×950 mm
Rotating Speed:0 - 26 Rpm
Insulation Decoiler Number:2 pcs
Insulation Material OD.:≤400mm
Insulation Material ID.:76mm
Insulation Paper Width:650mm
End-fill Strip Feeder:6 pcs
Edge Alignment System:Photoelectric sensing automatic rectifying deviation
User Interface:10inch (254mm) touch screen
Counting Turns Range:0 - 9999.9


Automatic Dry Type Transformer Foil Winding Machine Programmable 0

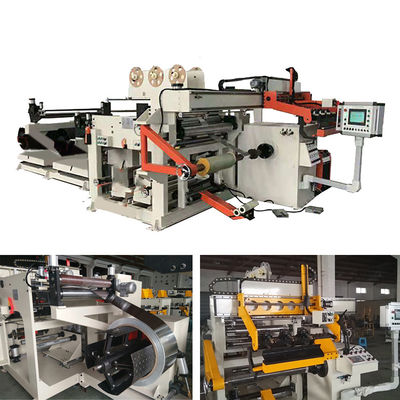

Fig 1: Transformer foil winding machine BRJ600-2's front view

Automatic Dry Type Transformer Foil Winding Machine Programmable 1

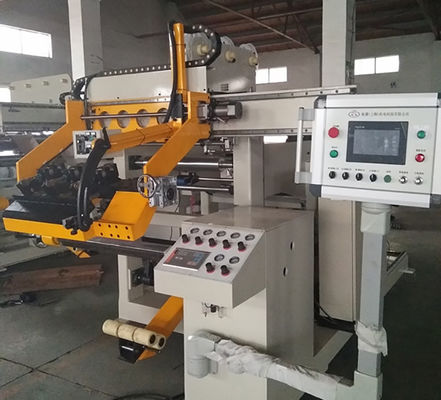

Fig 2: Transformer foil winding machine BRJ600-2's foil decoiler

Automatic Dry Type Transformer Foil Winding Machine Programmable 2Automatic Dry Type Transformer Foil Winding Machine Programmable 3Automatic Dry Type Transformer Foil Winding Machine Programmable 4
Automatic Dry Type Transformer Foil Winding Machine Programmable 5Automatic Dry Type Transformer Foil Winding Machine Programmable 6Automatic Dry Type Transformer Foil Winding Machine Programmable 7
Automatic Dry Type Transformer Foil Winding Machine Programmable 8
Automatic Dry Type Transformer Foil Winding Machine Programmable 9Automatic Dry Type Transformer Foil Winding Machine Programmable 10
