| Name: | Transformer Foil Winding Machine | Application: | Making Transformer |
|---|---|---|---|
| Cu Leaf Thickness: | 0.2 - 2.0mm | Al Leaf Thickness: | 0.3 - 3.0mm |
| Motor Power: | 30kw | Winding Speed: | 16rpm |
| Color: | Customizable | Warranty: | One Year |
| High Light: | 30kw Transformer Foil Winding Machine,1600mm copper wire winding machine,3.0mm 16rpm Transformer Foil Winding Machine |
||
Big Sized 1600mm Width Copper Leaf Winder Cast Resin Transformer Foil Winding Machine
Brief Introduction
Cast resin transformer foil winding machine BRJ1600-2 is a big sized professional equipment for winding cast resin air cooled transformers foil coil. Copper or aluminium leaf can be used by the transformer foil winding machine to make coils. This transformer foil winding machine can wind the foil with maximum width 1600mm. The transformer foil winding machine adopts one 30kw motor to provide big driving force to wind the foil and the insulation paper. The transformer foil winding machine can handle two layers of foil and two layers of insulation paper at most. Photoelectric sensors are used on the transformer foil winding machine to rectifying the deviation of the foil when the foil is wound. Touch screen provides a user friendly interface for operating the transformer foil winding machine easily.
Features of transformer foil winding machine
Main Parameters of transformer foil winding machine
The following is the standard specification of transformer foil winding machine BRJ1600-2, however, the machine can also be manufactured as requested.
| Axial Length (foil width): | 350-1,600mm |
| Finished Coil OD.: | ≤1,000mm |
| AL Foil Thickness: | 0.3 - 3.0 mm |
| Cu Foil Thickness: | 0.2 - 2.0 mm |
| Conductor Material OD.: | ≤1,000mm |
| Conductor Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Insulation Decoiler Number: | 2 pcs |
| Winding Power: | 30kw |
| Max. Winding Speed: | 16rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic control |
| Cleaning Foil Device: | Pneumatic control |
| Edge Alignment System: | Photoelectric sensing |
| Counting Turns Range: | 0 - 9999.9 |

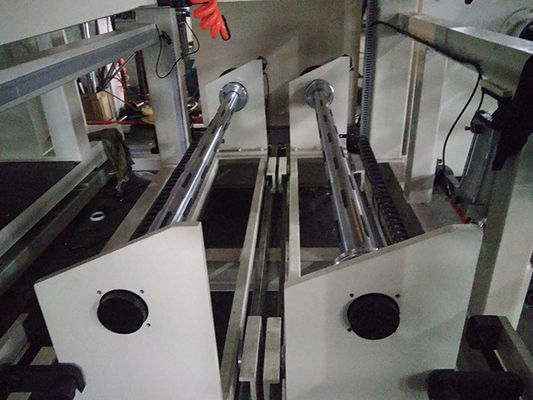

Fig 1: Transformer foil winding machine BRJ1600-2's front view

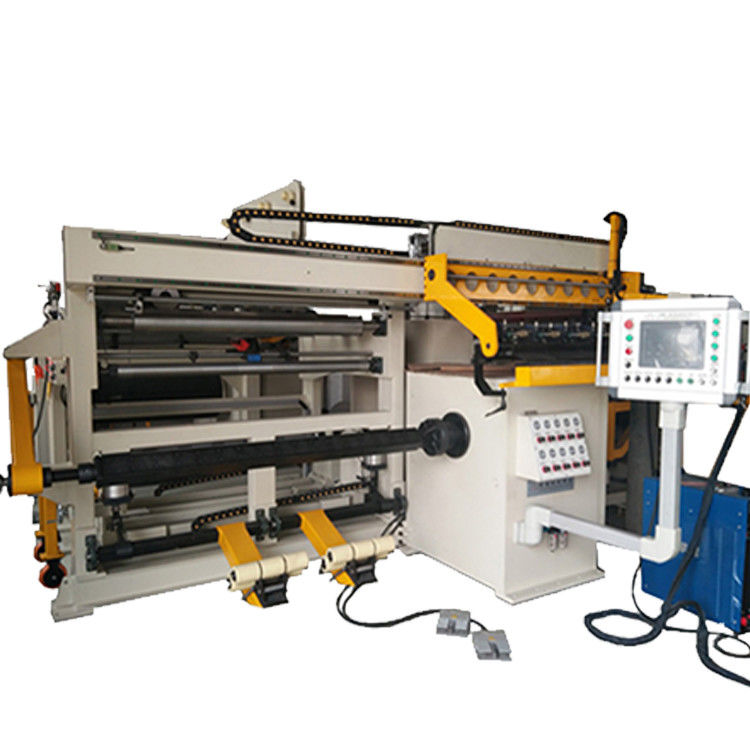

Fig 2: Transformer foil winding machine BRJ1600-2's back view
