| Name: | Transformer Foil Winding Machine | Usage: | Winding Coils |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Foil Width: | Maximum 200mm | Foil Decoiler: | 1 Set |
| Motor Power: | 4kw | Winding Speed: | 65rpm |
| Highlight: | 4kw Transformer Foil Winding Machine 200mm,65rpm small transformer winding machine,65rpm Transformer Foil Winding Machine |
||
Cold Welding Transformer Foil Winding Machine 200mm Width Copper Leaf Winder
Description of transformer foil winding machine BRJ200
Automatic transformer foil winding machine BRJ200 is a special device for winding copper or aluminium leaf with maximum width 200mm. The foil winding machine can handle one layer of copper or aluminium leaf and one layer of insulation paper. With control system based on PLC, the foil winding machine can wind the foil automatically as per the parameters input. The foil winding machine features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the machine through a touch screen.
Quick details of foil winding machine BRJ200
Technical parameters of transformer foil winding machine BRJ200
Typical standard specifications of foil winding machine BRJ200 are shown below, however the machine can also be manufactured as requested.
| Foil Width: | 100 - 200mm |
| Wound Coil OD. : | 600mm |
| Wound Coil Shape: | Round, Oval and Rectangle etc. |
| Conductor Material: | Copper or aluminum foil |
| Cu Foil Thickness: | 0.2-2.0mm |
| Al Foil Thickness: | 0.3-3.0mm |
| Foil Material ID.: | 500mm |
| Foil Material OD.: | ≤ 1000mm |
| Foil Decoiler Number: | 1 pc |
| Foil Decoiler Length: | 250mm |
| Foil Decoiler Expanding Range: | Φ420 ~ Φ520mm |
| Maximum Coil Weight: | 750kg |
| Correcting Mode: | Photoelectric sensing |
| Cleaning Unit: | pneumatic |
| Insulation Paper Decoiler Number: | 1set |
| Insulation Paper Coil OD.: | ≤ 400mm |
| Insulation Paper Coil ID.: | 76mm |
| Insulation Decoiler Width: | 250mm |
| Insulation Paper Decoiler Shaft: | Expandable |
| Winding Speed: | 0 ~60 RPM |
| Winding Power: | 4kw |
| Cold Welding Device: | 1 set |
| Positioning Device: | 1set |
| Grinding Device: | 1 set |
| Cold Welding Mould: | 6 sets |
| Control system: | PLC |
| Operation Interface: | Touch screen |
| Counting Range: | 0 - 9999.9 |

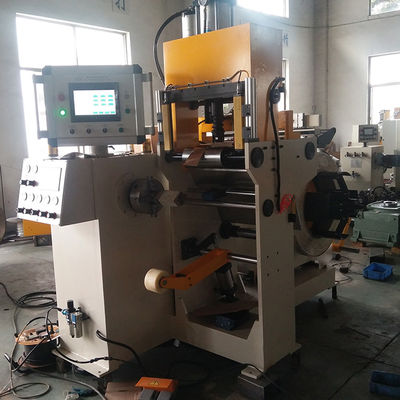

Fig 1: Transformer foil winding machine BRJ200's full view

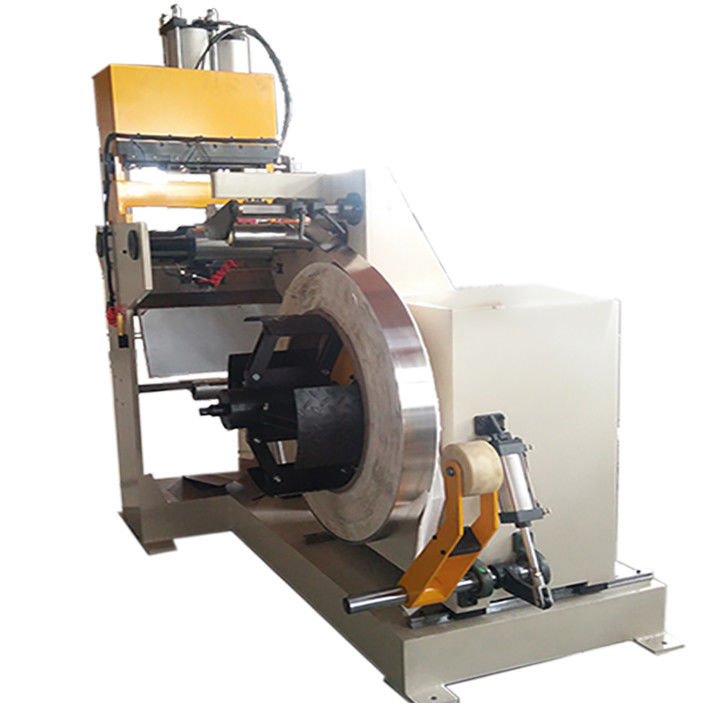

Fig 2: Transformer foil winding machine BRJ200's side view
