| Name: | Transformer Foil Winding Machine | Usage: | Winding Stip Coil |
|---|---|---|---|
| Winding Power: | 15kw | Winding Speed: | 20 Rpm |
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Deburring: | 2 Sets | Cleaning: | 2 Sets |
| High Light: | STT Dry Transformer Foil Winding Machine,15kw 20 rpm copper strip machine,20 rpm Transformer Foil Winding Machine |
||
Hot Sale Automatic TIG Welding Copper Strip Dry Transformer Foil Winding Machine
Description of transformer foil winding machine
Dry transformer foil winding machine BRJ1000-2 is a special winding equipment for winding transformer foil coil or similar products. The kind of transformer foil winding machine can wind the conductor foil with maximum width 1000mm. The transformer foil winding machine can wind one or two layers of copper foil with 0.2 - 2.0 mm thickness and aluminium foil with 0.3 - 3.0 mm thickness. The winding power of the kind of transformer foil winding machine is 15KW, which can provide enough torque to wind foil and insulation paper. The transformer foil winding machine is provided with TIG winding machine and water cooler, which makes the transformer foil winding machine weld foil and bus bar together automatically. With touch screen, it is very easy to operate the transformer foil winding machine.
Quick details of transformer foil winding machine
1) Two foil decoilers
2) Two insulation decoilers
3) End-fill strip feeder
4) Cleaning system
5) Foil deburring system
6) Cutting foil system
7) Edge alignment system
8) Automatic welding unit
Technical Parameters of transformer foil winding machine
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below, however these can be easily modified as requested.
| Max. Foil Width: | 1,000mm |
| Wound Coil Shape: | oval, circle and rectangular,etc. |
| Max Conductor Material OD.: | 1,000mm |
| Conductor Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 1,050mm |
| Foil Decoiler Expanding Range: | 420-520mm |
| Winding Shaft Size: | 80×80×1350 mm |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic control |
| Cleaning System: | Pneumatic control |
| Insulation Decoiler Number: | 2 pcs |
| Max Insulation Material OD.: | 400mm |
| Insulation Material ID.: | 76mm |
| Max Insulation Material Width: | 1,050mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Rectification Precision: | ±0.5mm |
| Electronic Control System: | PLC |
| Winding Power: | 15kw |
| Winding Speed: | 20rpm |
| Counting Turns Range: | 0 - 9999.9 |

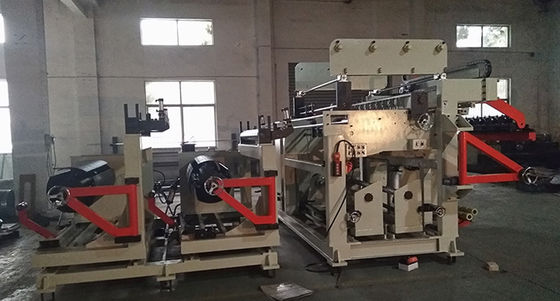

Fig 1: Transformer foil winding machine BRJ1000-2's full view

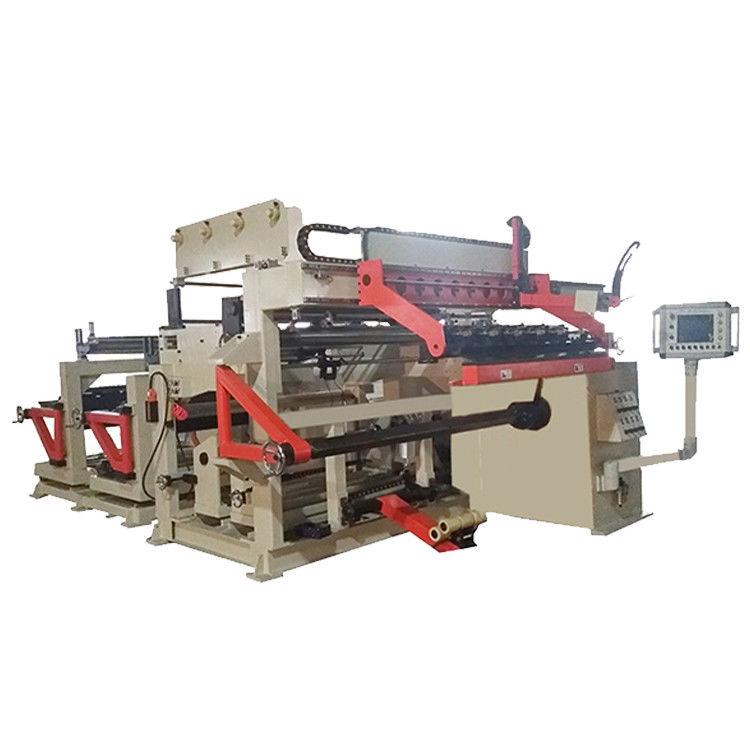

Fig 2:Transformer foil winding machine BRJ1000-2's back view
