Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine

1 set
MOQ
negotiation
Price
Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Copper Foil Winding Machine
Function: Winding Foil Coil
Cu Foil Thickness: 0.15 ~ 2.0mm
Al Foil Thickness: 0.2 ~ 3.0mm
Color: As Requested
Warranty Period: 12 Months
Rotating Speed: 0 ~ 200 Rpm
Power: 18.5kw
Highlight:

HV Foil Winding Machine

,

Transformer Copper Foil Winding Machine

,

Automatic Copper Foil Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: GY-BRJ
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine





Introduction of copper foil winding machine GY-BRJ



Automatic HV foil winding machine GY-BRJ is dedicated to winding high voltage transformer foil coils. The HV foil winding machine is provided with one foil decoiler and can be wind one layer of conductor foil. With two insulation decoilers, the HV foil winding machine can wind two layers of insulation paper. With HMI, it is very easy to operate the HV foil winding machine.





Main components of copper foil winding machine GY-BRJ

  • Main winding motor
  • PLC
  • Touch Screen
  • VFD
  • LV electrical device
  • Pneumatic System
  • Guide rail
  • ARC Welder



Technical parameters of copper foil winding machine GY-BRJ





Typical standard specifications of HV foil winding machine GY-BRJ are shown below and the foil winding machine can also be manufactured as requested.

Foil Width: 20 ~ 200mm
Conductor Foil Material: Copper or Aluminum
Al Foil Thickness: 0.2 ~ 3.0 mm
Cu Foil Thickness: 0.15 ~ 2.0 mm
Inner Supply Coil(Min/Max): Φ300mm/Φ400mm
Outer Supply Coil(Max.): Φ1000mm
Max. Coil Weight: 450kg
Insulation Thickness: 0.02 ~ 0.15mm
Insulation Supply Coil ID: Φ76mm
Maximum Insulation Supply Coil OD: Φ400mm
Maximum Winding Length(with lead bar): 1600mm(2050mm)
Wound Coil Inner Diameter: Ø300mm
Maximum Wound Coil Outer Diameter: Ø1100mm
Maximum Wound Coil Weight: 1500kg
Welding Mode: TIG
Mandrel Torque: 1800N.m
Tension On Conductor: 50 ~ 3000N
Foil Decoiler Number: 1 set
Insulation Decoiler Number: 2 sets
Winding Speed: 0 ~ 200rpm
Motor Power: 18.5KW
Foil Edge Deburring Unit: 1 set
Cleaning Unit: 1 set


Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 0

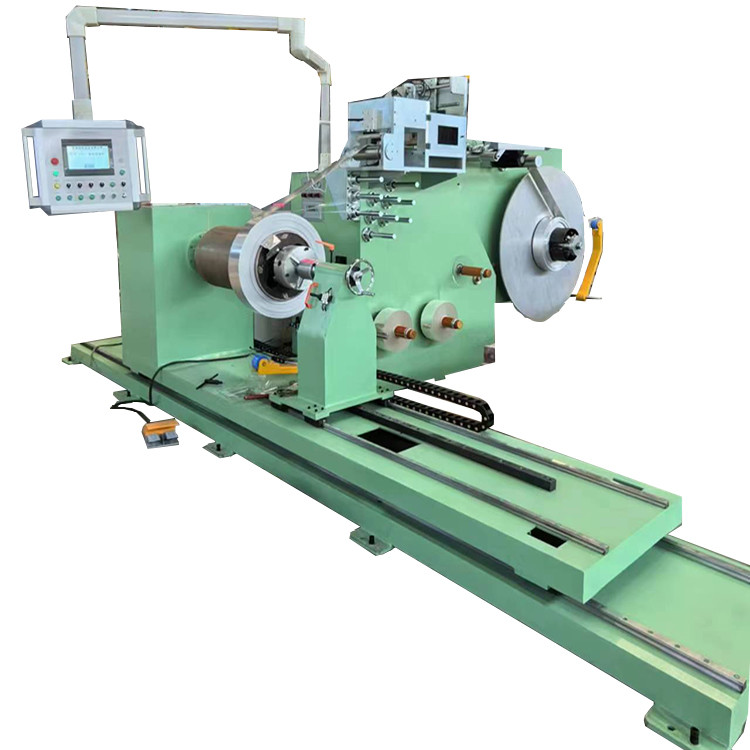

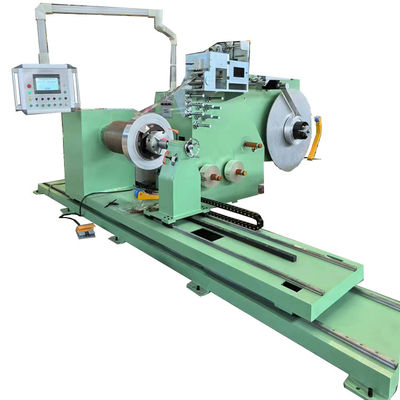

Fig 1: Copper foil winding machine GY-BRJ's front view

Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 1
Fig 2: Copper foil winding machine GY-BRJ's side view

Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 2Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 3
Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 4Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 5Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 6Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 7Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 8Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 9Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 10Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine 11
