| Name: | Copper Foil Winding Machine | Function: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.15 ~ 2.0mm | Al Foil Thickness: | 0.2 ~ 3.0mm |
| Color: | As Requested | Warranty Period: | 12 Months |
| Rotating Speed: | 0 ~ 200 Rpm | Power: | 18.5kw |
| High Light: | HV Foil Winding Machine,Transformer Copper Foil Winding Machine,Automatic Copper Foil Winding Machine |
||
Automatic Conductor Copper Foil Wining Machine Transformer HV Foil Winding Machine
Introduction of copper foil winding machine GY-BRJ
Automatic HV foil winding machine GY-BRJ is dedicated to winding high voltage transformer foil coils. The HV foil winding machine is provided with one foil decoiler and can be wind one layer of conductor foil. With two insulation decoilers, the HV foil winding machine can wind two layers of insulation paper. With HMI, it is very easy to operate the HV foil winding machine.
Main components of copper foil winding machine GY-BRJ
Technical parameters of copper foil winding machine GY-BRJ
Typical standard specifications of HV foil winding machine GY-BRJ are shown below and the foil winding machine can also be manufactured as requested.
| Foil Width: | 20 ~ 200mm |
| Conductor Foil Material: | Copper or Aluminum |
| Al Foil Thickness: | 0.2 ~ 3.0 mm |
| Cu Foil Thickness: | 0.15 ~ 2.0 mm |
| Inner Supply Coil(Min/Max): | Φ300mm/Φ400mm |
| Outer Supply Coil(Max.): | Φ1000mm |
| Max. Coil Weight: | 450kg |
| Insulation Thickness: | 0.02 ~ 0.15mm |
| Insulation Supply Coil ID: | Φ76mm |
| Maximum Insulation Supply Coil OD: | Φ400mm |
| Maximum Winding Length(with lead bar): | 1600mm(2050mm) |
| Wound Coil Inner Diameter: | Ø300mm |
| Maximum Wound Coil Outer Diameter: | Ø1100mm |
| Maximum Wound Coil Weight: | 1500kg |
| Welding Mode: | TIG |
| Mandrel Torque: | 1800N.m |
| Tension On Conductor: | 50 ~ 3000N |
| Foil Decoiler Number: | 1 set |
| Insulation Decoiler Number: | 2 sets |
| Winding Speed: | 0 ~ 200rpm |
| Motor Power: | 18.5KW |
| Foil Edge Deburring Unit: | 1 set |
| Cleaning Unit: | 1 set |

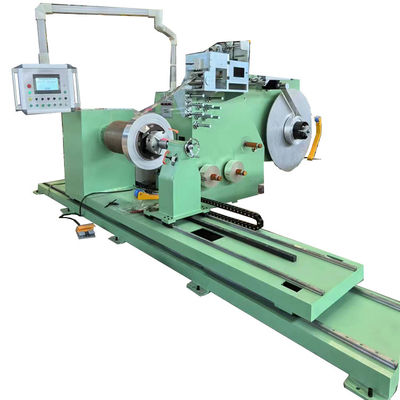

Fig 1: Copper foil winding machine GY-BRJ's front view

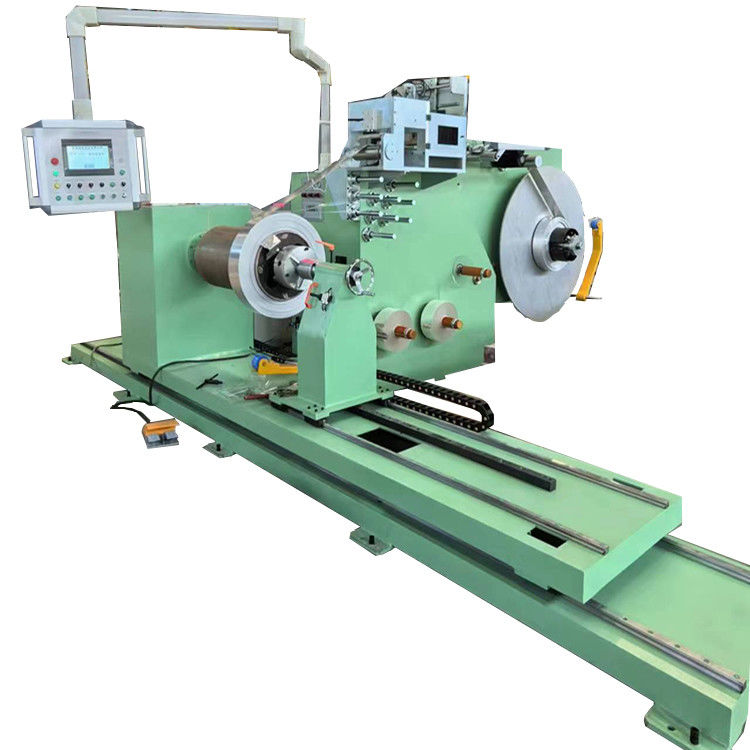

Fig 2: Copper foil winding machine GY-BRJ's side view
