Description of copper foil winding machine BRJ1400-2

Copper foil winding machine BRJ1400-2 is a special winder equipment. This kind of foil winding machine can wind both copper foil and aluminium foil. These wound foil coils can be used in cast resin transformers and other similar products. With two foil decoilers, the copper foil winding machine can wind one or two layers of foil. The copper foil winding machine is also provided with two insulation decoilers, which make the foil winding machine can also wind one or two layers of insulation paper. The copper foil winding machine is provided with TIG welding unit for welding foil with the bus bar together. The copper foil winding machine features high automation, easy operation and so on.

Main Components of copper foil winding machine BRJ1400-2

1. Main frame,

2. Winding unit,

3. Foil decoiler,

4. Insulation decoiler,

5. End-filling strip feeder,

6. Cleaning system,

7. Cutting system,

8. Foil deburring system,

Technical Parameters of copper foil winding machine BRJ1400-2

Typical standard specifications of copper foil winding machine BRJ1400-2 are shown below, however, the foil winding machine can also be manufactured as requested.

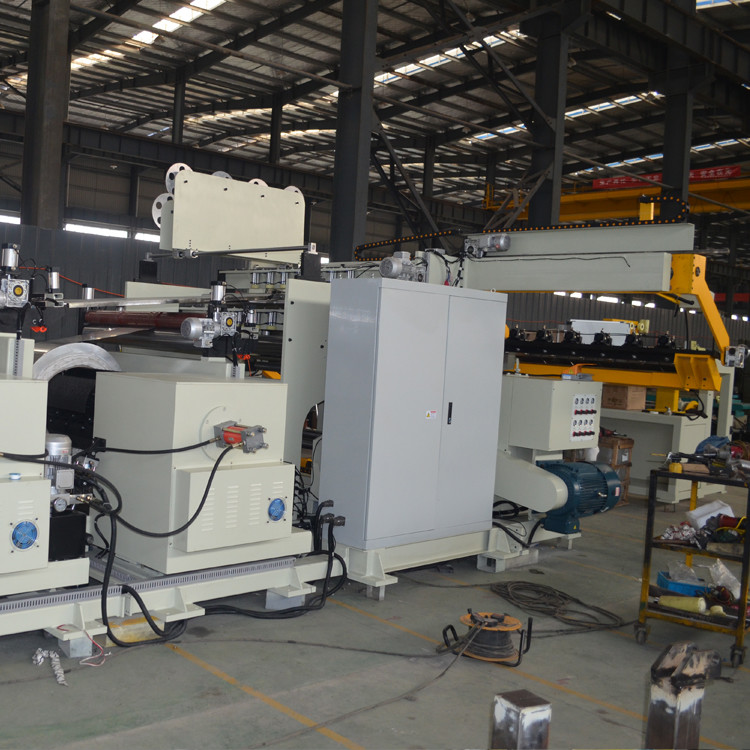

Fig 1: Copper foil winding machine BRJ1600-2's front view

Fig 2: Copper foil winding machine BRJ1600-2's insulation decoiler
