Dry Type Transformer Foil Winding Machine 16 rpm

Dry Type Transformer Foil Winding Machine 16 rpm

Dry Type Transformer Foil Winding Machine 16 rpm
Dry Type Transformer Foil Winding Machine 16 rpm Dry Type Transformer Foil Winding Machine 16 rpm

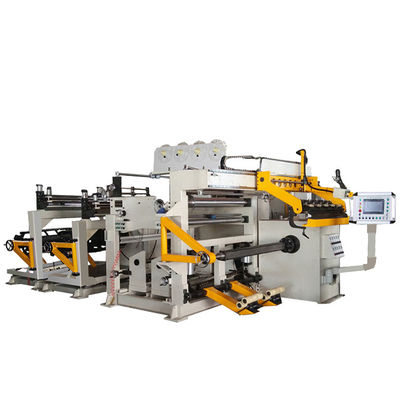

Large Image :  Dry Type Transformer Foil Winding Machine 16 rpm Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: BRJ1600-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Copper Foil Winding Machine Application: Winding Foil Coil
Conductor Foil: Cu / Al Strip Foil Decoiler: 2 Sets
Motor: 30kw Rotating Speed: 16 Rpm
Color: As Requested Warranty: 12 Months
High Light:

PLC Control Transformer Foil Winding Machine

,

16 rpm Dry Type power transformer winding machine

,

STT Transformer Foil Winding Machine 16 rpm

Factory Sales PLC Control System Dry Type Transformer Copper Foil Winding Machine





Introduction of copper foil winding machine BRJ1600-2



Heavy duty copper foil winding machine BRJ1600-2 is primarily used for winding Cast Resin or Air Cooled transformer’s coil and the foil conductor can be copper or aluminum strip. The kind of copper foil winding machine can wind one or two layers of foil conductor and one or two layers of insulation material (such as paper or similar material). The copper foil winding machine is provided with TIG welding unit, including winding machine, cooler, jig plat and so on, to weld bus bar with foil together. Photoelectric sensors are adopted in the copper foil winding machine to correct the position of foil when the foil is wound. Control system of the copper foil winding machine is based on PLC.





Features of copper foil winding machine

  • Slow starting
  • Running smooth
  • High automation
  • Full function
  • Big power
  • Neat foil edge
  • Tight winding
  • Easy operation



Main components of copper foil winding machine

  • Main frame, strong structure
  • Winding unit, 30kw motor driving
  • Insulation decoiler, with high tension
  • Cleaning system, pneumatic driving
  • Cutting system, pneumatic driving
  • Foil deburring system
  • Edge alignment system, photoelectric sensing
  • Automatic welding unit, TIG
  • Electronic control system
  • Pneumatic system



Main parameters of copper foil winding machine



  • Maximum foil width 1600mm
  • Cu foil thickness 0.2 - 2.0mm
  • Al foil thickness 0.3 - 3.0mm
  • Motor power 30kw
  • Winding speed 0 - 16rpm
  • Cutting foil disc shear
  • Deburring 2 sets
  • Cleaning 2 sets
