Description of lv foil winding machine BRJ300-2

LV Foil Winding Machine BRJ300-2 can be used to wind one or two layers of foil and one layer of insulation paper. The foil can be copper or aluminium foil. With the cold pressure welding unit, the LV foil winding machine can weld different kinds of conductor together, that is to say, the machine can weld not only cu foil and cu bus bar or al foil and al bus bar, but also cu foil and al bus bar or al foil and cu bar together. The foil decoilers are suitable for placing the conductor material with inner diameter 500mm and maximum outer diameter 1000mm.


Main components of lv foil winding machine BRJ300-2

1. Main frame
2. Foil decoilers, two pieces of foil decoiler with pneumatic tension
3. Foil feeder
4. Pressing roller
5. Main winding unit
6. PLC based control system
7. Pneumatic system
8. Cold welding, with six pieces of mold for different specifications of foil


Technical parameters of lv foil winding machine BRJ300-2

Typical standard specifications of LV foil winding machine BRJ300-2 are shown below and the lv foil winding machine can also be manufactured as requested.

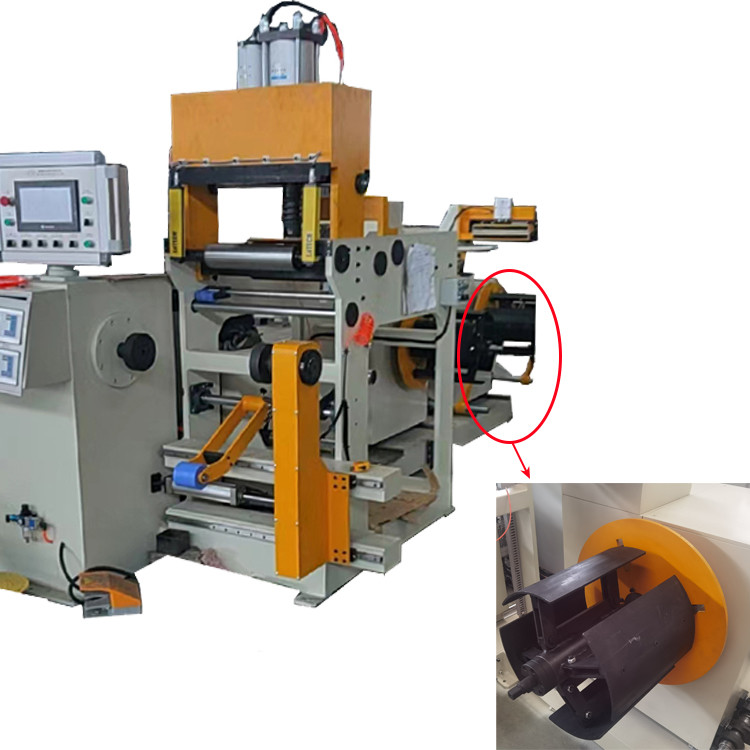

Fig 1: Transformer foil winding machine BRJ300-2's full view


Fig 2: Transformer foil winding machine BRJ300-2's welding effect
