Introduction of copper foil winding machine BRJ1600-2

Copper foil winding machine BRJ1600-2 is a professional conductor foil winder equipment. The copper foil winding machine can wind both copper foil and aluminium foil to make foil coils for cast resin transformers and other similar products. With two foil decoilers and two insulation decoilers, the copper foil winding machine can wind one or two layers of foil and one or two layers of insulation paper at once. With TIG welding unit, the copper foil winding machine can weld foil and bus bar together. With HMI and PLC control system, the copper foil winding machine can be operated easily.

Features of copper foil winding machine BRJ1600-2

• Slow starting
• Running smooth
• High automation
• Full function
• Big power
• Neat foil edge
• Tight winding
• Easy operation

Main components of copper foil winding machine BRJ1600-2

• Main frame, strong structure
• Winding unit, 30kw motor driving
• Insulation decoiler, with high tension
• Cleaning system, pneumatic driving
• Cutting system, pneumatic driving
• Foil deburring system
• Edge alignment system, photoelectric sensing
• Automatic welding unit, TIG
• Electronic control system
• Pneumatic system

Technical Parameters of copper foil winding machine BRJ1600-2

Typical standard specifications of copper foil winding machine BRJ1600-2 are shown below and the copper foil winding machine can also be manufactured as requested.

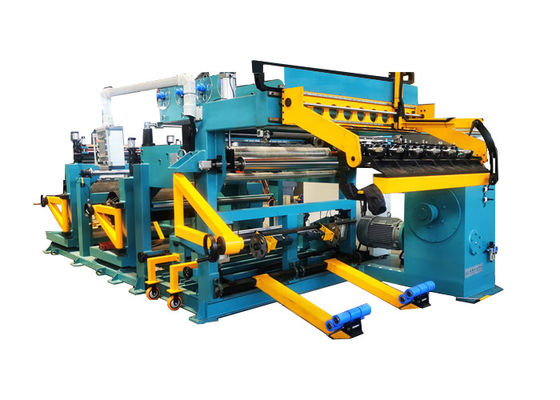

Fig 1: Copper foil winding machine BRJ1600-2's front view

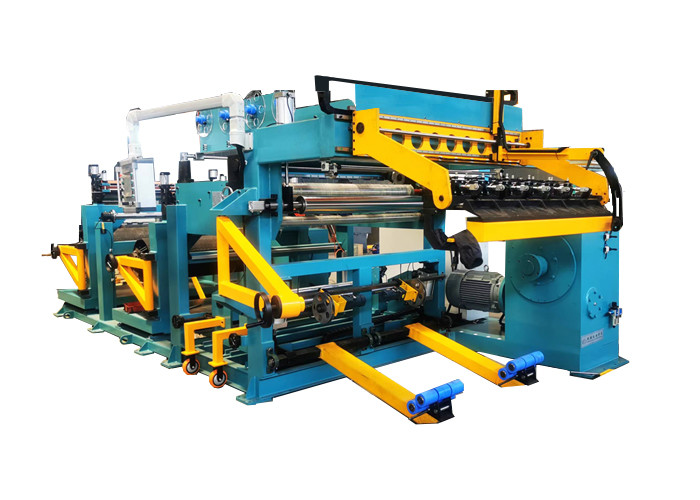

Fig 2: Copper foil winding machine BRJ1600-2's TIG welding unit
