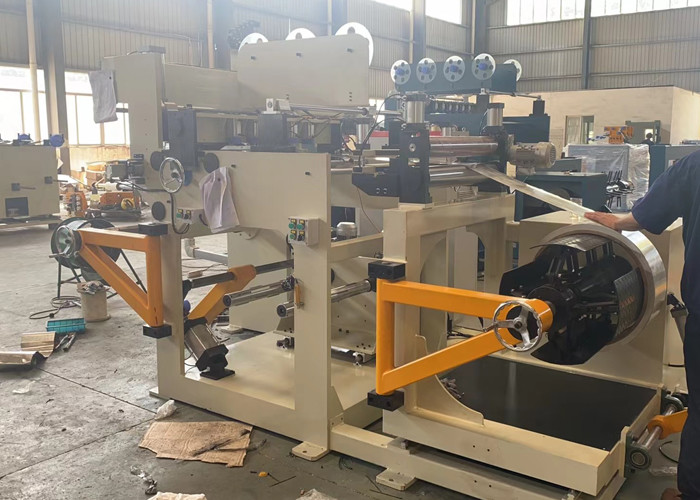

Description of transformer foil winding machine BRJ700

Transformer foil winding machine BRJ700 is one kind of professional winding equipment, which can be used to wind transformer coils. Both copper foil and aluminium foil can be wound with this kind of transformer foil winding machibne. With one set of foil decoiler and two insulation decoilers, the transformer foil winding machine can wind one layer of foil conductor and one or two layers of insulation paper. With TIG welding unit, the transformer foil winding machine can weld foil with bus bar together. The transformer foil winding machine features easy operation and so on.


Quick detail of transformer foil winding machine BRJ700

• Winding foil with maximum width 700mm
• Winding both copper foil and aluminium foil
• Conductor foil with ID 500mm and OD 1000mm maximum
• TIG welding unit
• Pressing roller
• Customized color

Technical parameters of transformer foil winding machine BRJ700

Typical standard specifications of transformer foil winding machine BRJ700 are shown below and the transformer foil winding machine can also be manufactured as requested.
