Automatic HV Winder Transformer Coil Winding Machine

1 set
MOQ
negotiable
Price
Automatic HV Winder Transformer Coil Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Transformer Coil Winding Machine
Usage: Winding Transformer Coil
Max Winding Width: 600mm
Center Height: 900mm
Motor Power: 4kw
Rotating Speed: 0 ~ 200rpm
Wire Guide: Servo Driven
Warranty: 12 Months
Highlight:

HV Transformer Coil Winding Machine

,

Automatic Transformer Coil Winding Machine

,

HV automatic transformer winding machine

Basic Infomation
Place of Origin: China
Brand Name: STT
Model Number: ZPX600
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Automatic HV Winder Transformer Coil Winding Machine





Introduction of transformer coil winding machine ZPX600



Transformer coil winding machine ZPX600 is one kind of special copper or aluminium wire winders. The transformer coil winding machine is mainly used to wind wire coil and this kind of coil can be used to make transformer or other similar products. With a 4kw winding motor, the transformer coil winding machine has a enough torque to wind different size of wire.The transformer coil winding machine is provided with a servo motor to drive the wire guide, which guarantees the precision of the wire guide moving. With PLC, the transformer coil winding machine can be operated easily.





Main features of transformer coil winding machine ZPX600

  • programmable
  • easy operation
  • slow starting
  • smooth running
  • strong pulling force
  • high reliability
  • high accuracy
  • full functions



Main parameters of transformer coil winding machine ZPX600



The standard specification of transformer coil winding machine ZPX600 are as following, however, the coil winding machine can also be manufactured as requested.

Winding Shaft Center Height From Floor: 900mm
Winding Shaft Size: 40x40x900mm
Max Winding Width: 600mm.
Winding Motor Power: 4kw
Max. Winding Speed: 200rpm
Speed Regulation: stepless speed regulation
Round Wire: Φ0.3 ~ Φ3.0mm
Max. Rotating Diameter: Φ600mm
Max. Loading Capacity: 500kg
Counting Mode: 5-digit counting
Counting Range: 0 - 9999.9



Automatic HV Winder Transformer Coil Winding Machine 0

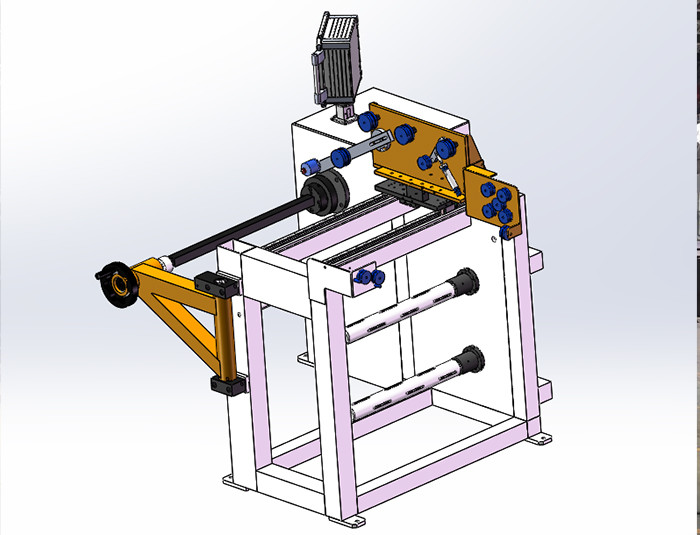

Fig 1: Transformer coil winding machine ZPX600's full view



Automatic HV Winder Transformer Coil Winding Machine 1

Fig 2: Transformer coil winding machine ZPX600's winding guide



Automatic HV Winder Transformer Coil Winding Machine 2Automatic HV Winder Transformer Coil Winding Machine 3Automatic HV Winder Transformer Coil Winding Machine 4Automatic HV Winder Transformer Coil Winding Machine 5Automatic HV Winder Transformer Coil Winding Machine 6Automatic HV Winder Transformer Coil Winding Machine 7Automatic HV Winder Transformer Coil Winding Machine 8Automatic HV Winder Transformer Coil Winding Machine 9Automatic HV Winder Transformer Coil Winding Machine 10
