Description of transformer coil winding machine ZPX150-3

Transformer coil winding machine is a special coil winding machine for winding copper or aluminium wire to make wire coils. These coils can be used in transformers or other similar products. The transformer coil winding machine is provided with three wire guides, which makes the machine can wind three coils at the same time. The transformer coil winding machine is provided with PLC and HMI, which makes the machine be operated easily. The transformer coil winding machine features slow start, smooth running, big torque, and so on.

Quick details of transformer coil winding machine ZPX150-3

• Winding copper or aluminium wire
• Three wire guides
• Winding width 150mm
• Winding three coils at one time
• Winding power 4kw
• Customized color

Technical parameters of transformer coil winding machine ZPX150-3

Typical standard specifications of transformer coil winding machine ZPX150-3 are shown below and the coil winding machine can also be manufactured as requested.

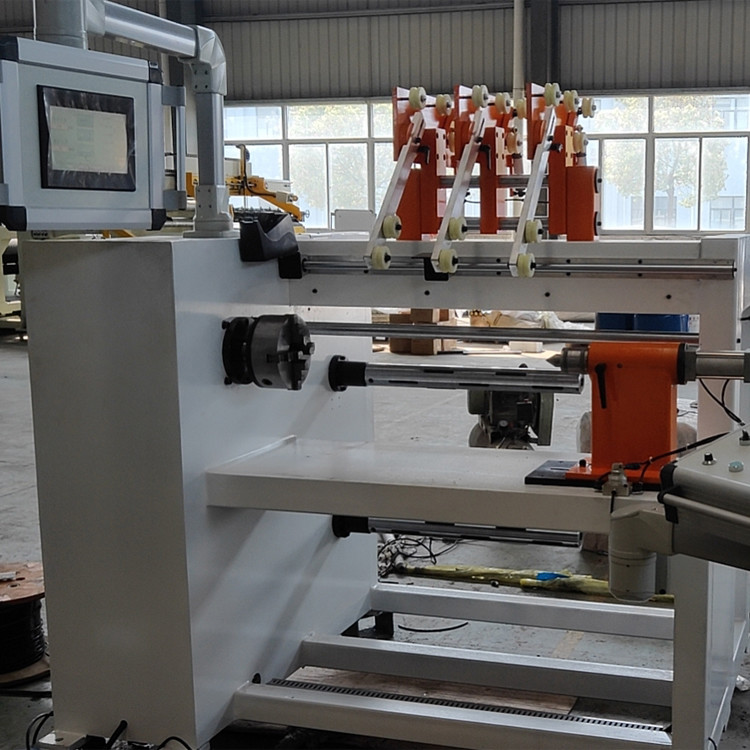

Fig 1: Transformer coil winding machine ZPX150-3's full view

Fig 2:Transformer coil winding machine ZPX150-3's back view
