Description of copper foil winding machine BRJ400-2-2

Copper foil winding machine BRJ400-2-2 is one kind of reactor foil winder. The copper foil winding machine is provided with two foil decoilers and two insulation decoilers, therefore, the copper foil winding machine can handle one or two layers of foil and one or two layers of insulation paper. The copper foil winding machine is provided with two checks for clamping iron core and the foil is wound on the core directly. With PLC and HMI, the copper foil winding machine features smooth running, high automation and easy operation etc.


Technical Parameter of copper foil winding machine BRJ400-2-2

Typical standard specifications of copper foil winding machine BRJ400-2-2 are shown below and the foil winding machine can also be manufactured as requested.

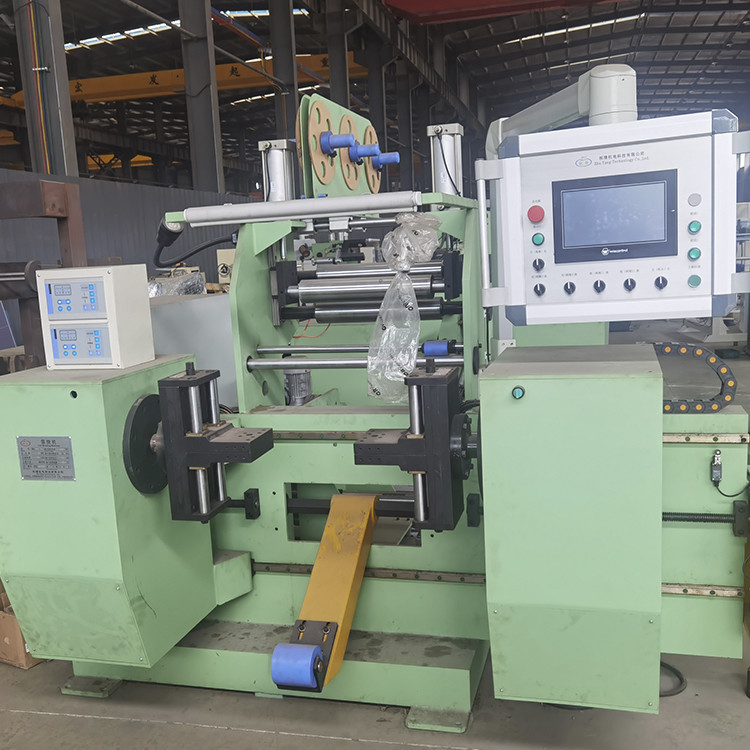

Fig 1: Copper foil winding machine BRJ400-2-2's front view

Fig 2: Copper foil winding machine BRJ400-2-2's back view
