| Product Name: | Copper Foil Winding Machine | Usage: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Machine Color: | As Requested | Warranty Period: | 12 Months |
| Rotating Speed: | 0 ~ 26 Rpm | Winding Power: | 8kw |
| Highlight: | Copper Foil Winding Machine Automatic,Automatic Copper Strip Winding Machine,Reactor Copper Strip Winding Machine |
||
Automatic Reactor Copper Foil Winding Machine Foil Strip Winder
Description of copper foil winding machine BRJ400-2-2
Copper foil winding machine BRJ400-2-2 is one kind of reactor foil winder. The copper foil winding machine is provided with two foil decoilers and two insulation decoilers, therefore, the copper foil winding machine can handle one or two layers of foil and one or two layers of insulation paper. The copper foil winding machine is provided with two checks for clamping iron core and the foil is wound on the core directly. With PLC and HMI, the copper foil winding machine features smooth running, high automation and easy operation etc.
Technical Parameter of copper foil winding machine BRJ400-2-2
Typical standard specifications of copper foil winding machine BRJ400-2-2 are shown below and the foil winding machine can also be manufactured as requested.
| Max foil width: | 400mm |
| Max Rotating Diameter: | Ø600mm |
| Coil shape: | oval, round, rectangle |
| Conductor material: | Copper / Aluminum foil |
| Al foil thickness: | 0.3～3.0 mm |
| Cu foil thickness: | 0.2～2.0 mm |
| Foil Roll ID.: | 500mm |
| Foil decoiler number: | 2 sets |
| Foil decoiler expansion range: | Ø420~520mm |
| Max foil decoiler capacity: | 750kg |
| Winding speed: | 0~35rpm |
| Winding power: | 8KW |
| Core axis holder: | Two chucks |
| Insulation axis: | 2 sets |
| Maximum layer insulation roll OD: | Ø400mm |
| Layer insulation roll ID: | Ø76mm |
| Lay insulation width: | ≤450mm |
| Countering range: | 0.0~9999.9 |

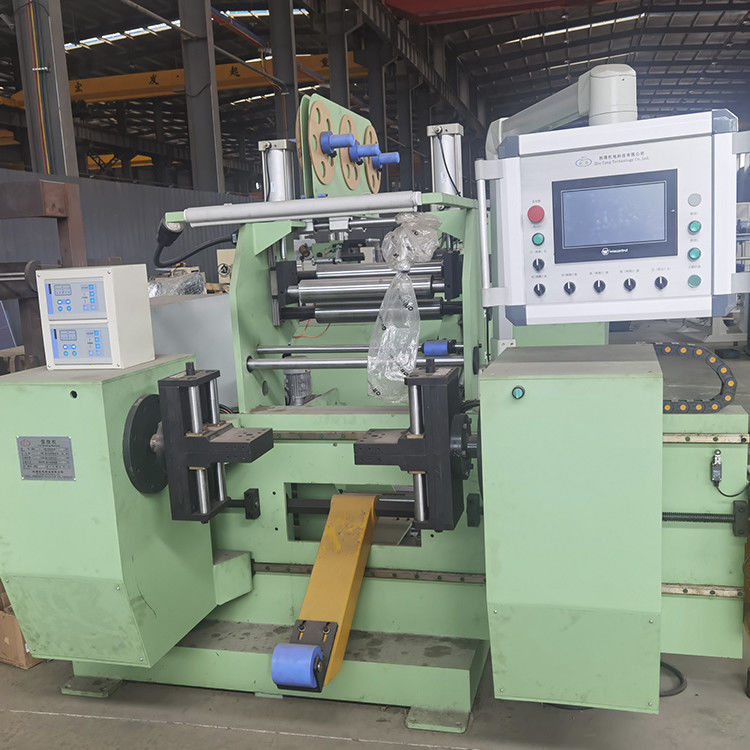

Fig 1: Copper foil winding machine BRJ400-2-2's front view
Fig 2: Copper foil winding machine BRJ400-2-2's back view
