Description of copper foil winding machine BRJ600-2-2

Copper foil winding machine BRJ600-2-2 is a specail foil winder for winding reactor foil coil and other similar products. The copper foil winding machine is provided with two chucks for clamping iron core and the foil can be wound on the core directly. With two servo motors driving, the two chucks has the same torque, which guarantees the good shape of the wound coil. This kind of copper foil winding machine can wind one or two layers of copper foil with thickness 0.2mm ~ 2mm and aluminium foil with thickness 0.3mm ~ 3mm. Two photoelectric sensors are adopted to correct the position of the foil when winding. With the control system based on PLC, the copper foil winding machine can be operated easily. All parameters of the copper foil winding machine can be input through a touch screen. The copper foil winding machine features slow starting, big torque, high automation and so on.

Quick details of copper foil winding machine BRJ600-2-2

• Two servo motors driving
• Two chucks clamping iron core
• Foil material ID 500mm
• Maximum foil material OD 1000mm
• Maximum winding speed 26rpm
• Winding power 11kw
• TIG welding
• Customized color

Technical parameters of copper foil winding machine BRJ600-2-2

Typical standard specifications of BRJ600-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

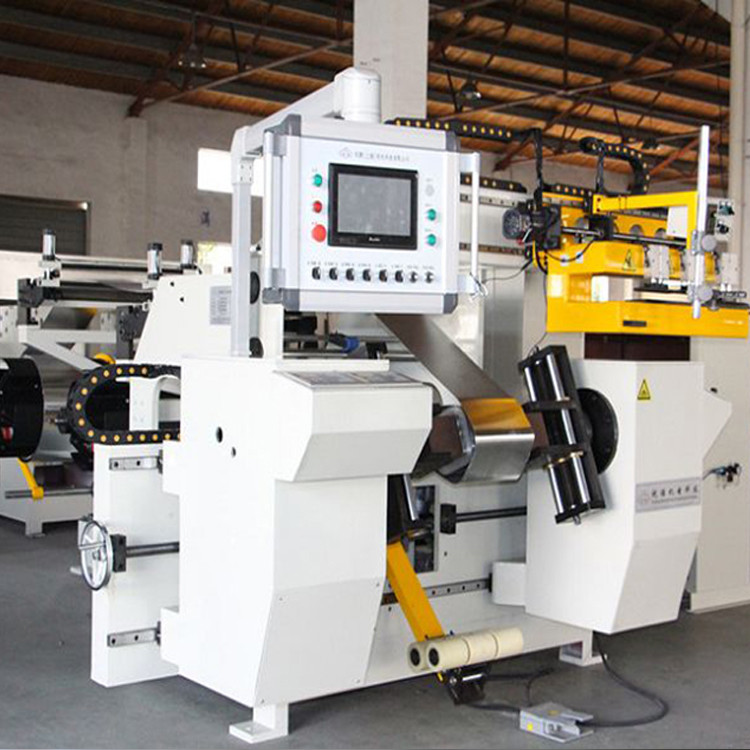

Fig 1: Copper foil winding machine BRJ600-2-2's front view

Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler
