Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical

Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical

Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical
Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical

Large Image :  Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ600-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Copper Foil Winding Machine Usage: Making Reactor Coil
Al Foil Thickness: 0.3 ~ 3.0mm Cu Foil Thickness: 0.2 ~ 2.0mm
Welding Mode: TIG Motor Power: 11kw
Color: Optional Warranty: 12 Months
High Light:

Automatic Reactor Foil Strip Winder

,

TIG Coil Winder

,

Electrical Copper Foil Winding Machine

Automatic Reactor Foil Strip Winder Electrical TIG Copper Foil Winding Machine





Description of copper foil winding machine BRJ600-2-2



Copper foil winding machine BRJ600-2-2 is a specail foil winder for winding reactor foil coil and other similar products. The copper foil winding machine is provided with two chucks for clamping iron core and the foil can be wound on the core directly. With two servo motors driving, the two chucks has the same torque, which guarantees the good shape of the wound coil. This kind of copper foil winding machine can wind one or two layers of copper foil with thickness 0.2mm ~ 2mm and aluminium foil with thickness 0.3mm ~ 3mm. Two photoelectric sensors are adopted to correct the position of the foil when winding. With the control system based on PLC, the copper foil winding machine can be operated easily. All parameters of the copper foil winding machine can be input through a touch screen. The copper foil winding machine features slow starting, big torque, high automation and so on.





Quick details of copper foil winding machine BRJ600-2-2

  • Two servo motors driving
  • Two chucks clamping iron core
  • Foil material ID 500mm
  • Maximum foil material OD 1000mm
  • Maximum winding speed 26rpm
  • Winding power 11kw
  • TIG welding
  • Customized color



Technical parameters of copper foil winding machine BRJ600-2-2



Typical standard specifications of BRJ600-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

Foil width: 250 ~ 600mm
Max. Finished Coil OD.: 800mm
Conductor Strip Material: Copper or Aluminum
Al Strip Thickness: 0.3 ~ 3.0 mm
Cu Strip Thickness: 0.2 ~ 2.0 mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 650mm
Foil Decoiler Expanding Range: Ø420 ~ 520mm
Max. Coil Weight: 1,000KG
Motor Power: 11kw
Max. Winding Speed: 26 rpm
Welding System: TIG
Insulation Decoiler Number: 2 pcs
Insulation Decoiler Width: 650mm
Insulation Decoiler Shaft: pneumatic open/close action
Edge Alignment System: Photoelectric sensing
Control System: PLC
User interface: 10 inches (254mm) touch screen
Counting Range: 0 ~ 9999.9



Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 0

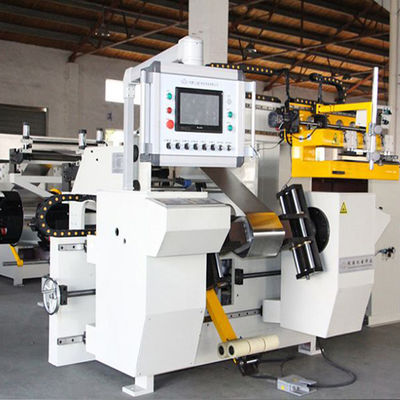

Fig 1: Copper foil winding machine BRJ600-2-2's front view



Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 1

Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler



Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 2Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 3

Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 4Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 5Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 6Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 7Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 8Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 9Automatic Reactor Foil Strip TIG Copper Foil Winding Machine Electrical 10
