Description of transformer coil winding machine ZPX150-3

Transformer coil winding machine is a special winder for winding copper or aluminium wire to make transformer coils and other similar products. The transformer coil winding machine is a high effective winder and it is with three wire guides, which make the coil winding machine wind three coils at the same time. With PLC control system and HMI, the transformer coil winding machine is with high effective and high automation, etc.

Quick details of transformer coil winding machine ZPX150-3

• Winding copper or aluminium wire
• Three wire guides
• Winding width 150mm
• Winding three coils at one time
• Winding power 4kw
• Customized color

Technical parameters of transformer coil winding machine ZPX150-3

Typical standard specifications of transformer coil winding machine ZPX150-3 are shown below, however the coil winding machine can also be manufactured as requested.

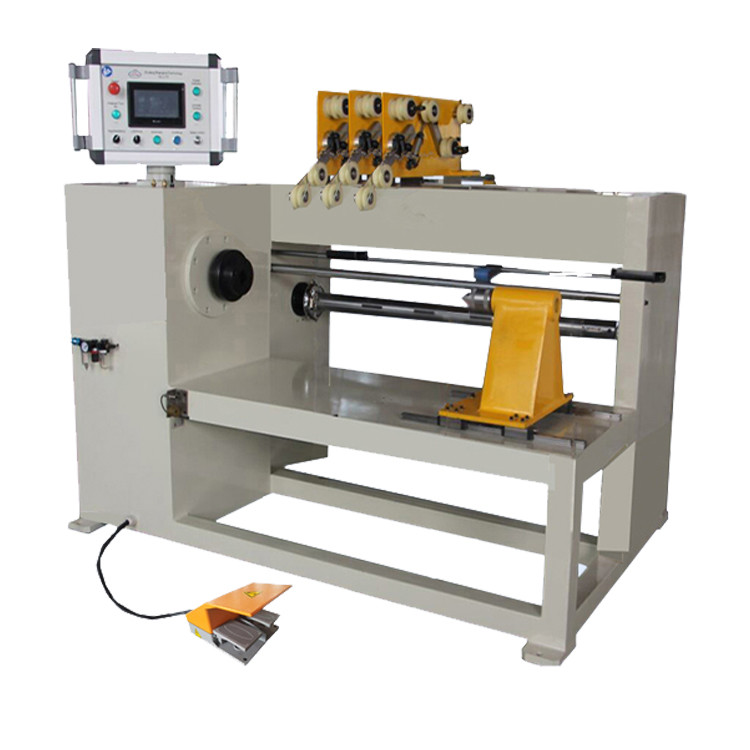

Fig 1: Transformer coil winding machine ZPX150-3's full view

Fig 2:Transformer coil winding machine ZPX150-3's back view
