Automatic Transformer Coil Winding Machine 400mm Winding Width

1 set
MOQ
negotiable
Price
Automatic Transformer Coil Winding Machine 400mm Winding Width
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Name: Transformer Coil Winding Machine
Usage: Winding Wire Coil
Conductor Material: Copper Or Aluminium Wire
Wire Type: Flat Or Round Wire
Wire Guide: 1 Pc
Servo Motor: 0.75kw
Widning Motor Power: 2.2kw
Winding Speed: 200rpm
Highlight:

400mm Transformer Coil Winding Machine

,

400mm automatic coil winder

,

Transformer Coil Winding Machine 200rpm
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX400
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

PLC Control 400mm Winding Width Automatic Transformer Coil Winding Machine

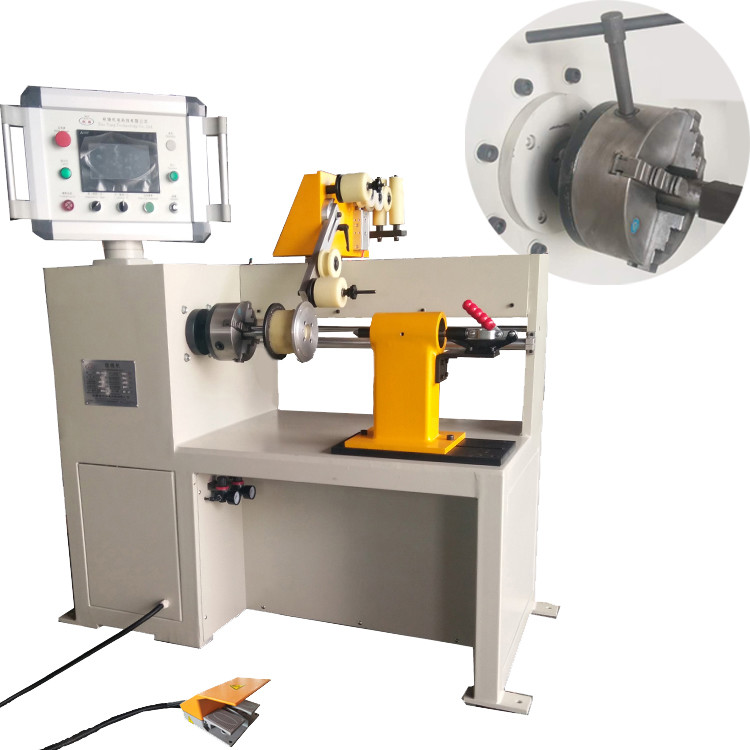

Description of transformer coil winding machine ZPX400



Transformer coil winding machine ZPX400 is for winding coil with maximum height 400mm. The copper and aluminium wire can be wind with this kind of winding machine. With servo motor driving wire guide, the coil winding machine can wind a coil automatically with preset parameters. Two axial coil stand is for placing wire reel and feeding the wire for winding machine.





Quick details of transformer coil winding machine

  • Motor power 2.2kw
  • 200 rpm winding speed
  • PLC control system
  • Winding flat or round wire
  • pneumatic system
  • Foot pedal



Technical Parameters of transformer coil winding machine



Typical standard specifications of transformer coil winding machine ZPX400 are shown below, however these can be easily modified as requested.

Center Height: 800mm
Tailstock: Live center
Motor Power: 2.2kw
Winding Speed: 0-200 rpm
Speed Regulation: stepless speed regulation
Control System: PLC
Round Wire Diameter: 0.3-3.0mm
Max Winding Height: 400mm
Max Rotation Diameter: 500mm
Automatic Wire Laying Function: Min. Spread Pitch: 0.01mm
Basic Function: 5-digit counting
Counting Turn Range: 0 - 9999.9
