Description of copper foil winding machine BRJ200

Copper foil winding machine BRJ200 is one of special winder to wind copper or aluminium foil. This kind of foil winding machine is provided with cold pressure welding, which can be used to weld copper bus bar and copper foil or weld copper bus bar and aluminium foil together. Servo motor is adopted to make sure all actions of the machine are precise. The foil winding machine is with high precision, high automatic, high safety, high torque, smooth running and so on. The foil winding machine can be operated easily.

Main components of copper foil winding machine BRJ200

1. Main frame

2. Foil conductor decoiler

3. Roller

4. Winding unit

5. Insulation decoiler

6. Photoelectric sensor

7. Cold press welding unit

8. Pneumatic unit

Technical parameters of copper foil winding machine BRJ200

Typical standard specifications of copper foil winding machine BRJ200 are shown below, however, the copper foil winding machine can also be manufactured as requested.

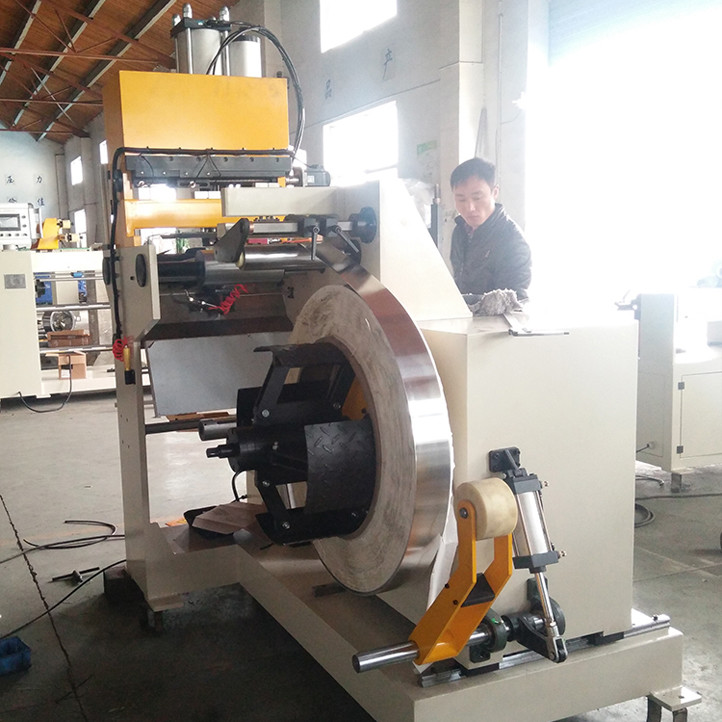

Fig 1: Copper foil winding machine BRJ200's full view

Fig 2: Copper foil winding machine BRJ200's back view
