Description of copper foil winding machine BRJ1400-2

Copper foil winding machine BRJ1400-2 is one kind of conductor foil winder equipment. The copper foil winding machine can wind both copper foil and aluminium foil. The copper foil winding machine can wind one or two layers of foil and one or two layer of insulation paper. With TIG welding unit, the copper foil winding machine can weld foil with the bus bar together. With PLC control system and HMI, the copper foil winding machine can be operated very easily.

Main Components of copper foil winding machine BRJ1400-2

1. Main frame,

2. Winding unit,

3. Foil decoiler,

4. Insulation decoiler,

5. End-filling strip feeder,

6. Cleaning system,

7. Cutting system,

8. Foil deburring system,

Technical Parameters of copper foil winding machine BRJ1400-2

Typical standard specifications of copper foil winding machine BRJ1400-2 are shown below and the copper foil winding machine can also be manufactured as requested.

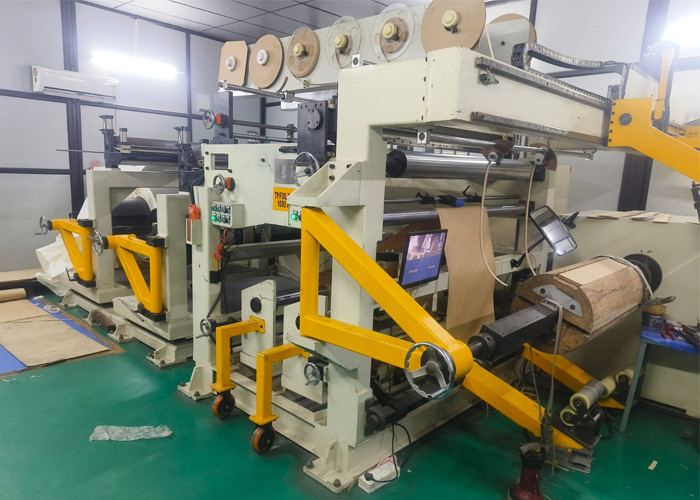

Fig 1: Copper foil winding machine BRJ1600-2's front view

Fig 2: Copper foil winding machine BRJ1600-2's insulation decoiler
