Copper Wire Winder Lathe Automatic Transformer Coil Winding Machine 200 rpm

Copper Wire Winder Lathe Transformer Automatic Coil Winding Machine

Introduction of automatic coil winding machine ZPX2500

Wire winder lathe transformer automatic coil winding machine ZPX2500, adopting automatic wire laying and tension technologies, is especially suitable for winding different shapes of coils. These coils can be used in transformers, reactors and other similar products. The automatic coil winding machine is provided with main winding motor, automatic wire laying unit, layer insulation unit, pneumatic system, PLC based control system, and servo motors, etc. The automatic coil winding machine features slow starting, smooth running, high automation, full functions, and strong pulling force, etc.

Main Components of automatic coil winding machine

1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system

Technical Parameters of automatic coil winding machine

Typical standard specifications of automatic coil winding machine ZPX2500 are shown below, however these can be easily modified as requested.

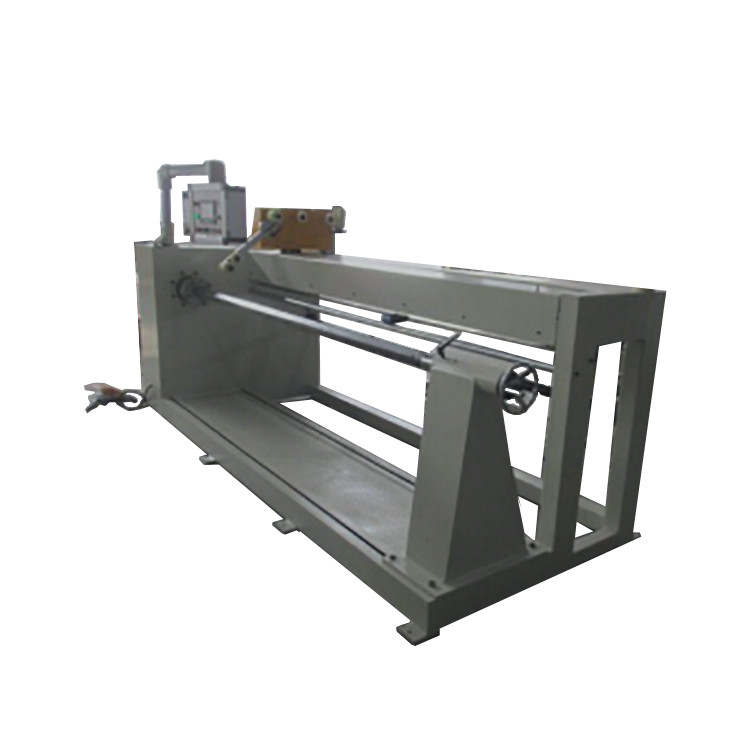

Fig 1: Automatic coil winding machine ZPX2500's full view

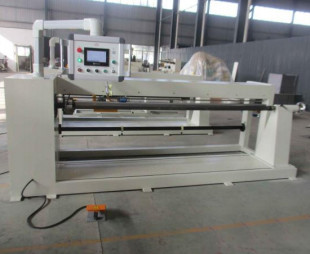

Fig 2: Automatic coil winding machine ZPX2500's side view
