Electrical Programmable Cast Resin Transformer Copper Foil Winding Machine


Description of copper foil winding machine BRJ800-2

Cast resin transformer copper foil winding machine BRJ800-2 can be used to wind both copper foil and aluminium foil to make dry type transformer’s coil. The maximum width of the foil wound by the foil winding machine is 800mm. The foil winding machine can wind one or two layers of the foil and one or two layers of insulation paper. With TIG welding unit, the foil winding machine can weld foil and busbar together. PLC control system makes the copper foil winding machine be operated easily.


Quick Detail of copper foil winding machine

• Maximum 800mm foil width
• Winding copper or aluminium foil
• Foil conductor ID 500mm, OD 1000mm
• TIG welding
• Pressing roller
• Customized color


Technical Parameters of copper foil winding machine

Typical standard specifications of copper foil winding machine BRJ800-2 are shown below, however these can be easily modified as requested.

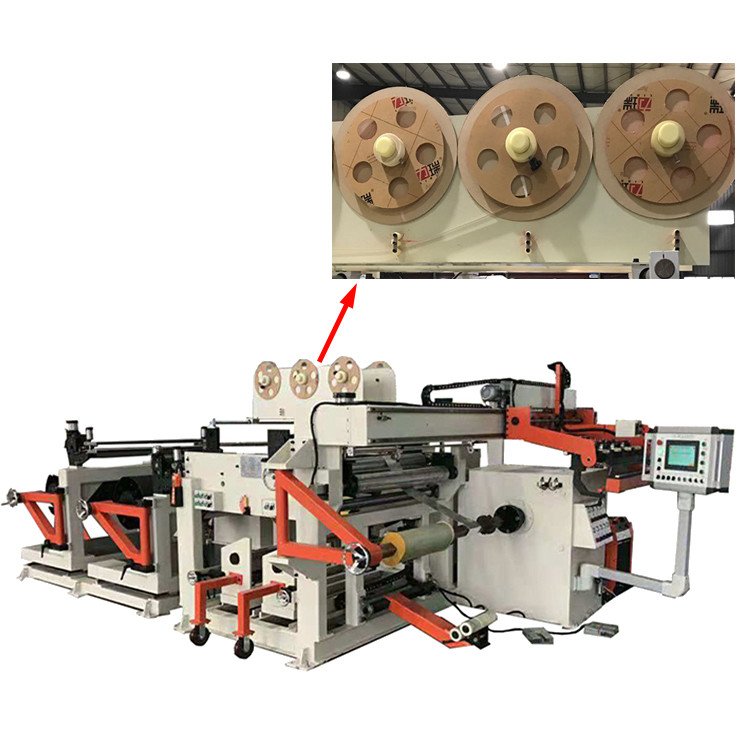

Fig 1: Copper foil winding machine BRJ800-2's front view


Fig 2: Copper foil winding machine BRJ800-2's foil decoiler
