Brief of automatic coil winding machine ZPX800

Automatic coil winding machine ZPX800 is a professional wire winder for winding copper or aluminium wire to make reactor coils and other similar products. The automatic coil winding machine can be used to wind both round wire and flat wire. Two chucks are used to clamp the iron core and the wire is wound on the core directly. The winding speed of the automatic coil winding machine can be adjusted by a potentiometer on the screen board. The automatic coil winding machine is provided with a foot pedal, which can be used to stop or start the coil winding machine and switch the rotating direction. With control system based on PLC, the automatic coil winding machine can be operated easily.

Main features of automatic coil winding machine ZPX800

• programmable, different programs are for different functions,
• simple operation, high automation makes it easy to operate the machine
• slow starting, when the machine runs at the beginning, the rotation speed is very slow for safety
• smooth running, strong structure guarantees the machine run stably
• strong pulling force, drive stocks are driven by two servo motors, providing big pulling force
• high reliability

Main parameters of automatic coil winding machine ZPX800

The standard specifications of automatic coil winding machine ZPX800 are as following, however, the automatic coil winding machine can also be manufactured as requested.

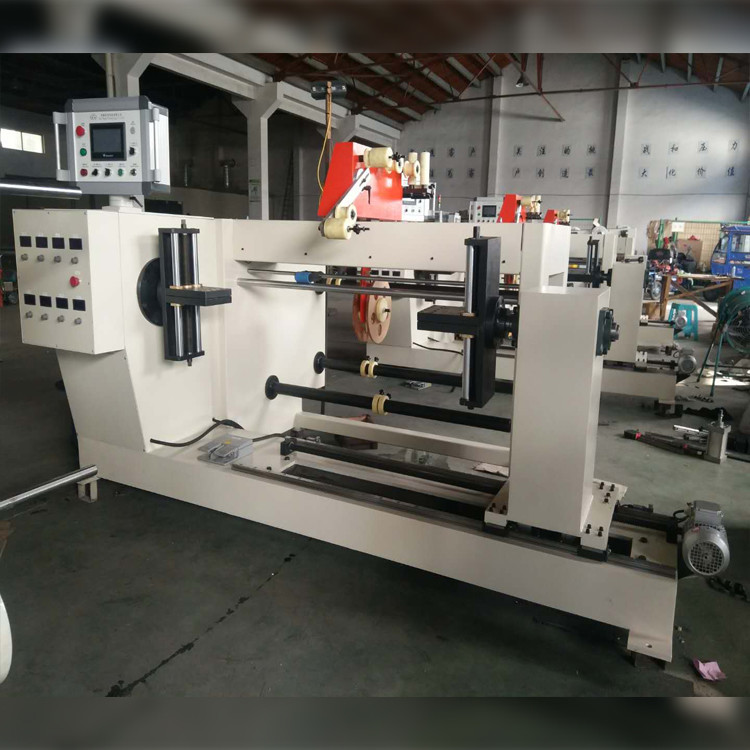

Fig 1: Automatic coil winding machine ZPX800's front view

Fig 2: Automatic coil winding machine ZPX800's back view
