Description of transformer foil winding machine BRJ300-2

Transformer foil winding machine BRJ300-2 is mainly used to wind transformer coils and other similar products. The transformer foil winding machine can handle one or two layers of copper or aluminium foils and one or two layers of insulation paper. The foil winding machine is provided with a cold pressure welding unit for welding foil and bus bar together. The foot pedal of the transformer foil winding machine is used to control the machine to run or stop running and switch the rotating direction. The foil winding machine features soft starting, smooth running, and easy to operate.

Main Components of transformer foil winding machine BRJ300-2

1. Main steel welded frame

2. Foil decoiler

3. Foil feeder

4. Pressing roller

5. Main winding unit

6. PLC based control system

7. Pneumatic system

Technical Parameters of transformer foil winding machine BRJ300-2

Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below, however, the foil winding machine can also be manufactured as requested.

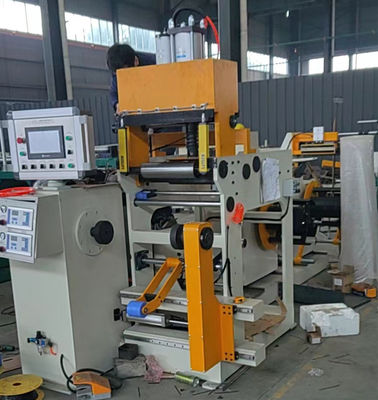

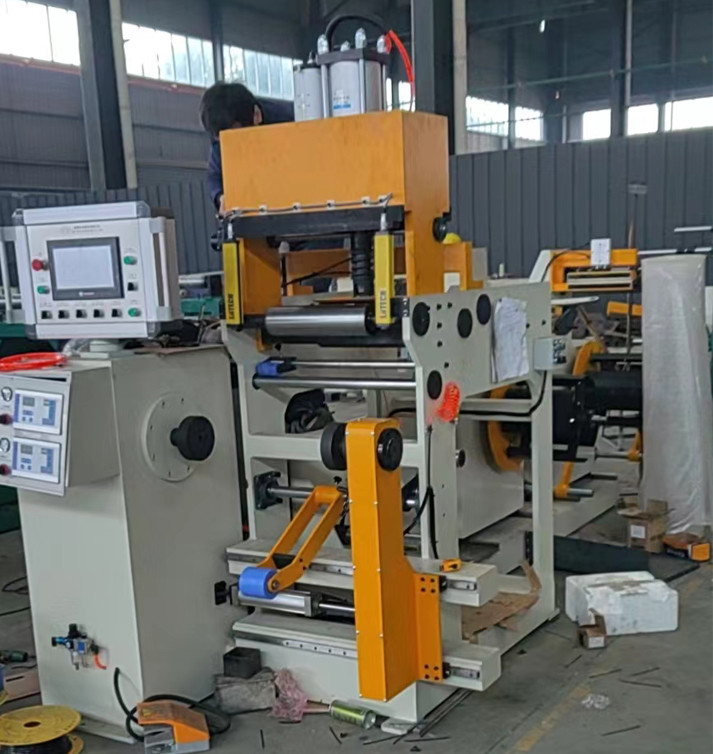

Fig 1: Transformer foil winding machine BRJ300-2's full view

Fig 2: Transformer foil winding machine BRJ300-2's welding effect
