Heavy Duty Copper Wire Winder Distribute Transformer Coil Winding Machine

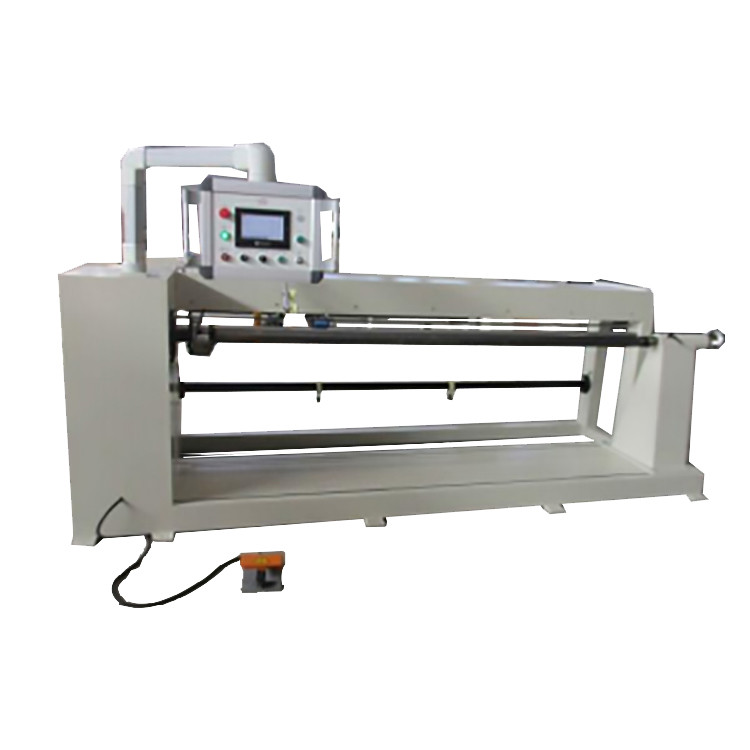

Description of transformer coil winding machine ZPX2500

Transformer coil winding machine ZPX2500 is used to wind transformer wire coil and other similar products. The kind of transformer coil winding machine can be used to wind the coil with maximum width 2500mm. The transformer coil winding machine can wind copper or aluminium wire with round wire diameter 0.3 ~ 5.0mm and flat wire maximum size 5x12mm. The transformer coil winding machine is provided with a 750w servo motor for driving the wire guide, which guarantees the wire guide moving precisely. The transformer coil winding machine features slow start, smooth running and so on.

Quick details of transformer coil winding machine

• 900 center height
• Winding shaft length 2800mm
• Winding power 7.5kw
• Winding speed 80rpm

Main Components of transformer coil winding machine

1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system

Technical Parameters of transformer coil winding machine

Typical standard specifications of coil winding machine ZPX2500 are shown below, however these can be easily modified as requested.
