High Effective HV Winder Automatic Coil Winding Machine

1 set
MOQ
negotiable
Price
High Effective HV Winder Automatic Coil Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Transformer Coil Winding Machine
Wire Type: Flat Wire Or Round Wire
Control System: PLC
Rotating Speed: 0 ~ 1000rpm
Wire Guide: 2 Pcs
Warranty Period: 12 Months
Machine Color: Optional
Wire Material: Copper / Aluminium Wire
Highlight:

Automatic Coil Winding Machine

,

HV Winder Coil Winding Machine

,

High Effective Coil Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX200-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

High Effective HV Winder Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX200-2



Automatic coil winding machine, adopting automatic wire laying and tension technologies, is especially suitable for winding different kinds of coils. The coils can be used in transformers and other similar products. The machine is provided with main winding motor, automatic wire laying unit, insulation decoiler, coil stand, pneumatic system, PLC based control system, and servo motors, etc. It features high automation, full functions, and strong driving force, etc.





Technical Parameter of automatic coil winding machine ZPX200-2



Typical standard specifications of ZPX200-2 are shown below, however the machine can also be manufactured as requested.

Centre height: 1000mm
Wire guide: 2 pcs
Maximum per coil height: 200mm
Round wire diameter: Ø0.3 ~ 3.0mm
Max. finished coil OD.: Ø250mm
Max. coil weight: 150kg
Winding shaft size: 40x40mm
Winding speed: 0 ~ 1000RPM
Speed regulation: Variable frequency and stepless speed regulation
Motor power: 5.5kw
Automatic wire laying: Diameter of wire adjustable, Min. step: 0.01mm
Counting mode: 5-digit counting
Counting range: 0 - 9999.9
Machine dimension(LxWxH): 1500mm x 800mm x 1700mm



High Effective HV Winder Automatic Coil Winding Machine 0

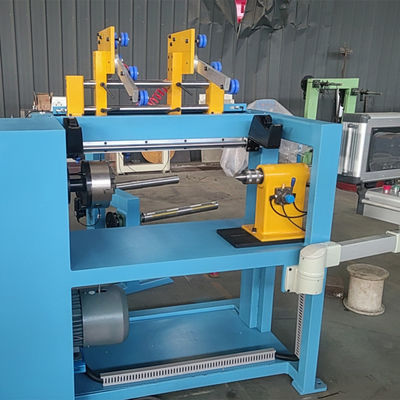

Fig 1: Transformer coil winding machine ZPX200-2's full view



High Effective HV Winder Automatic Coil Winding Machine 1

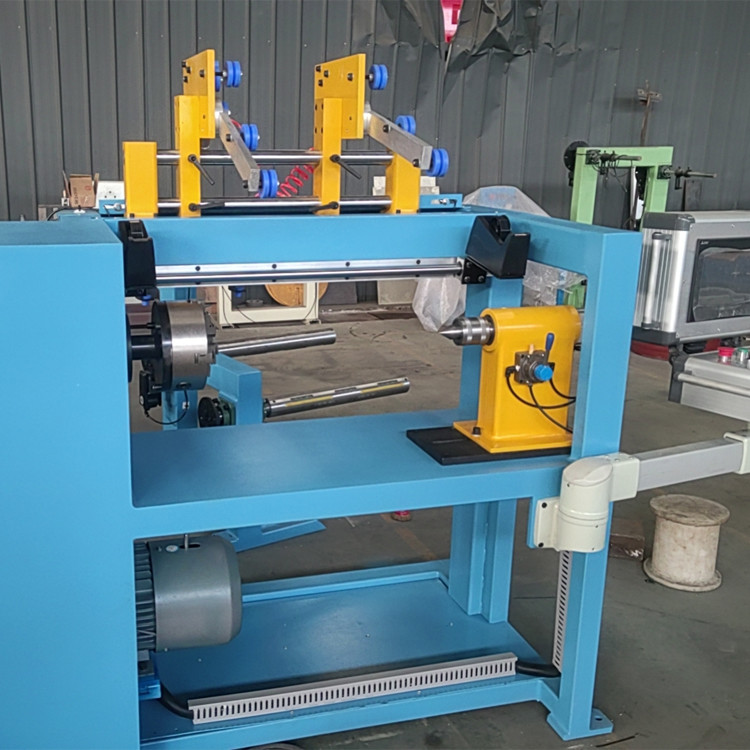

Fig 2:Transformer coil winding machine ZPX200-2's back view

High Effective HV Winder Automatic Coil Winding Machine 2

High Effective HV Winder Automatic Coil Winding Machine 3

High Effective HV Winder Automatic Coil Winding Machine 4

High Effective HV Winder Automatic Coil Winding Machine 5

High Effective HV Winder Automatic Coil Winding Machine 6

High Effective HV Winder Automatic Coil Winding Machine 7

High Effective HV Winder Automatic Coil Winding Machine 8

High Effective HV Winder Automatic Coil Winding Machine 9
